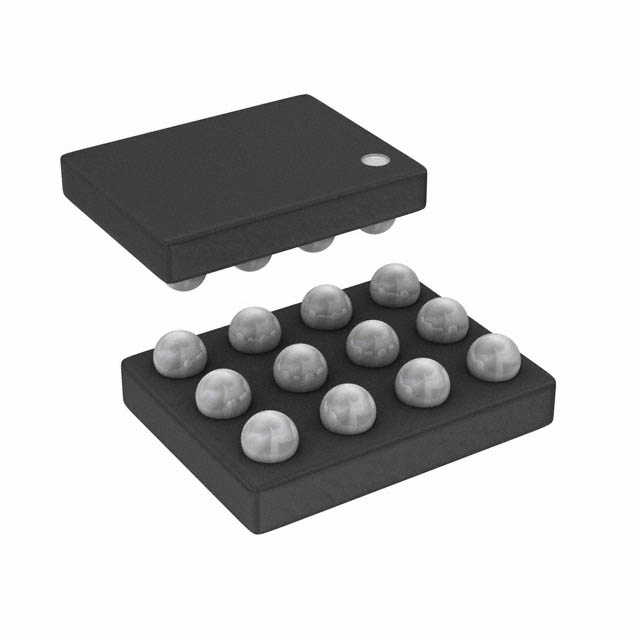

ADP1655ACBZ-R7
IC LED DRVR RGLTR I2C 12WLCSPManufacturer: Analog Devices Inc.
Categories: LED Drivers
Quality Control: Learn More
Analog Devices Inc. ADP1655ACBZ-R7 is a single-output, DC-DC boost LED driver IC. This device features I2C dimming control and an internal switch, operating at a 2MHz switching frequency. Designed for high-efficiency power conversion, it supports an input voltage range of 2.7V to 5.5V. The ADP1655ACBZ-R7 delivers up to 500mA for flash applications, making it suitable for camera flash modules. It is supplied in a compact 12-WLCSP (1.5x2) package, surface mounted, and delivered on tape and reel. The operating temperature range is -40°C to 85°C.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 12-WFBGA, WLCSP |
| Voltage - Output | - |
| Mounting Type | Surface Mount |
| Number of Outputs | 1 |
| Frequency | 2MHz |
| Type | DC DC Regulator |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Applications | Camera Flash |
| Current - Output / Channel | 500mA (Flash) |
| Internal Switch(s) | Yes |
| Topology | Step-Up (Boost) |
| Supplier Device Package | 12-WLCSP (1.5x2) |
| Dimming | I2C |
| Voltage - Supply (Min) | 2.7V |
| Voltage - Supply (Max) | 5.5V |
