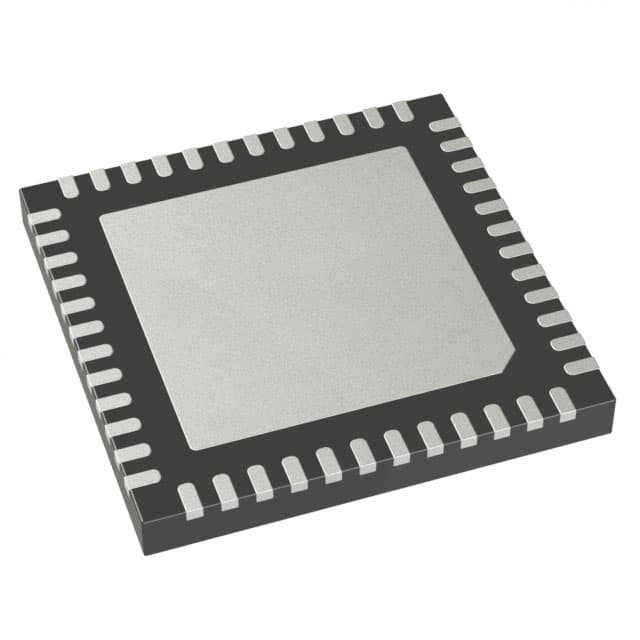

ADN2847ACP-48
IC DRVR LASER DIODE 3.3V 48LFCSPManufacturer: Analog Devices Inc.
Categories: Laser Drivers
Quality Control: Learn More
Analog Devices Inc. ADN2847ACP-48 is a single-channel laser diode driver designed for high-speed optical communication applications. This component supports data rates up to 3.3Gbps and operates with a supply voltage range of 3V to 3.6V. It features precise control of laser diode bias current up to 100mA and modulation current up to 80mA. The ADN2847ACP-48 is housed in a compact 48-LFCSP (7x7) package, suitable for surface mounting and demanding thermal management. Its robust operating temperature range of -40°C to 85°C makes it a reliable choice for fiber optic systems, telecommunications infrastructure, and high-speed data transmission modules.
Additional Information
Series: -RoHS Status: unknownManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BagDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Bag |
| Package / Case | 48-WFQFN Exposed Pad, CSP |
| Mounting Type | Surface Mount |
| Type | Laser Diode Driver (Fiber Optic) |
| Operating Temperature | -40°C ~ 85°C |
| Voltage - Supply | 3V ~ 3.6V |
| Data Rate | 3.3Gbps |
| Current - Modulation | 80mA |
| Current - Bias | 100 mA |
| Supplier Device Package | 48-LFCSP (7x7) |
| Number of Channels | 1 |
| Current - Supply | 50 mA |
