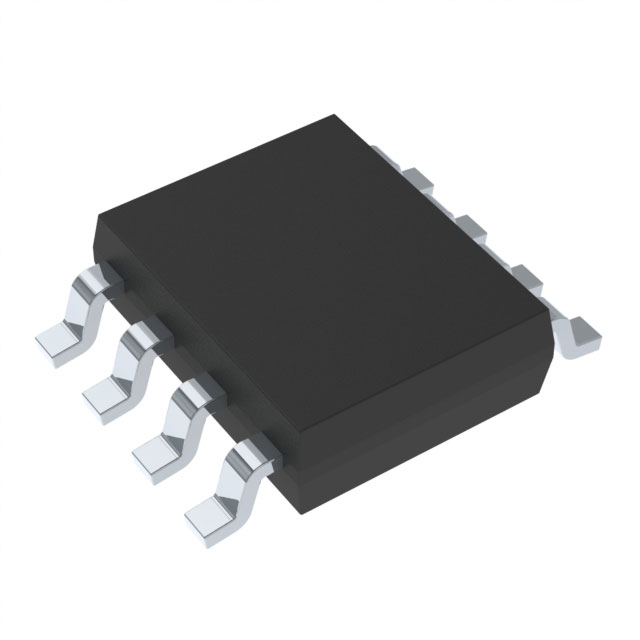

ADUM4121-1BRIZ-RL
DGTL ISO 5KV 1CH GATE DVR 8SOICManufacturer: Analog Devices Inc.
Categories: Isolators - Gate Drivers
Quality Control: Learn More
2.3A Gate Driver Magnetic Coupling 5000Vrms 1 Channel 8-SOIC-IC
Additional Information
Series: iCoupler®RoHS Status: ROHS3 CompliantManufacturer Lead Time: 10 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 8-SOIC (0.295"", 7.50mm Width) |
| Mounting Type | Surface Mount |
| Operating Temperature | -40°C ~ 125°C |
| Voltage - Forward (Vf) (Typ) | - |
| Current - Peak Output | 2.3A |
| Technology | Magnetic Coupling |
| Current - Output High, Low | - |
| Voltage - Isolation | 5000Vrms |
| Approval Agency | CSA, UR, VDE |
| Supplier Device Package | 8-SOIC-IC |
| Rise / Fall Time (Typ) | 18ns, 18ns |
| Common Mode Transient Immunity (Min) | 150kV/µs |
| Propagation Delay tpLH / tpHL (Max) | 42ns, 53ns |
| Pulse Width Distortion (Max) | 13ns |
| Grade | - |
| Number of Channels | 1 |
| Voltage - Output Supply | 7.5V ~ 35V |
| Qualification | - |
Request a Quote
