OP484FP
IC OPAMP GP R-R 4.25MHZ LN 14DIPManufacturer: Analog Devices Inc.
Categories: Instrumentation, Op Amps, Buffer Amps
Quality Control: Learn More

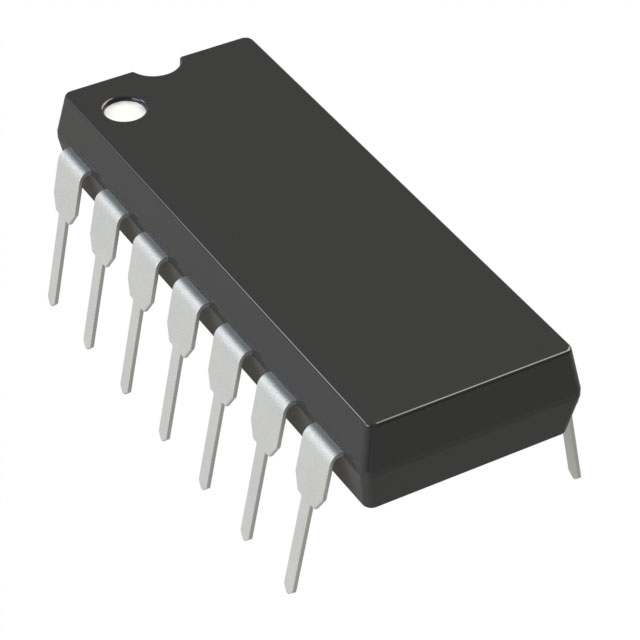

The Analog Devices Inc. OP484FP is a quad, general-purpose operational amplifier featuring rail-to-rail output. With a gain bandwidth product of 4.25 MHz and a slew rate of 4V/µs, this component is suitable for demanding applications. It operates from a 3V to 36V supply span and offers a low input bias current of 80 nA. The OP484FP is housed in a 14-PDIP package for through-hole mounting and supports an operating temperature range of -40°C to 125°C. Its 4-circuit configuration and rail-to-rail output capability make it valuable in instrumentation and signal conditioning circuits across various industrial sectors.
Additional Information
Series: -RoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TubeDownload Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | 14-DIP (0.300"", 7.62mm) |
| Output Type | Rail-to-Rail |
| Mounting Type | Through Hole |
| Amplifier Type | General Purpose |
| Operating Temperature | -40°C ~ 125°C |
| Current - Supply | - |
| Slew Rate | 4V/µs |
| Gain Bandwidth Product | 4.25 MHz |
| Current - Input Bias | 80 nA |
| Voltage - Input Offset | 250 µV |
| Supplier Device Package | 14-PDIP |
| Number of Circuits | 4 |
| Current - Output / Channel | 10 mA |
| Voltage - Supply Span (Min) | 3 V |
| Voltage - Supply Span (Max) | 36 V |
