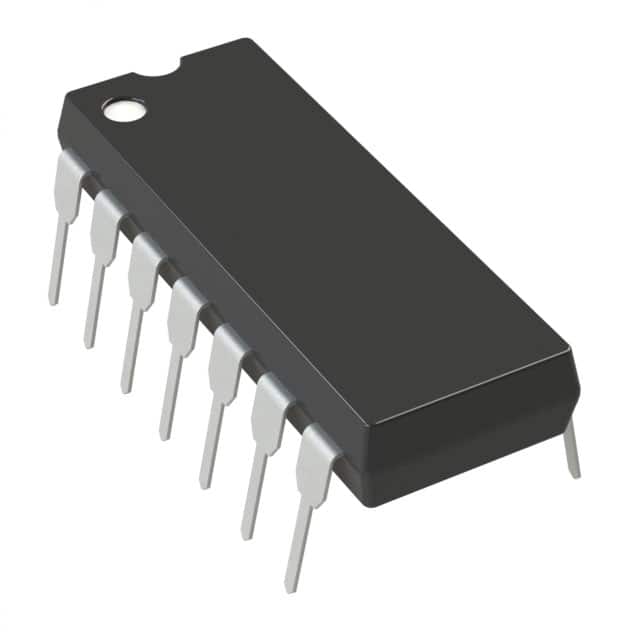

OP470GN#PBF
IC OPAMP GP 4 CIRCUIT 14DIPManufacturer: Analog Devices Inc.
Categories: Instrumentation, Op Amps, Buffer Amps
Quality Control: Learn More
Analog Devices Inc. OP470GN-PBF is a quad general-purpose operational amplifier. This component features a 6 MHz gain-bandwidth product and a 3V/µs slew rate, making it suitable for a wide range of signal conditioning and amplification tasks. Designed for through-hole mounting in a 14-PDIP package, it offers a 15 nA input bias current and a 400 µV input offset voltage. The device operates with a supply voltage span from 9 V to 36 V and consumes approximately 9 mA per channel. Its operating temperature range is -40°C to 85°C. The OP470GN-PBF finds application in instrumentation and general-purpose amplification circuits across various industrial sectors.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 39 week(s)Product Status: ActivePackaging: TubeDownload Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | 14-DIP (0.300"", 7.62mm) |
| Output Type | - |
| Mounting Type | Through Hole |
| Amplifier Type | General Purpose |
| Operating Temperature | -40°C ~ 85°C |
| Current - Supply | 9mA (x4 Channels) |
| Slew Rate | 3V/µs |
| Gain Bandwidth Product | 6 MHz |
| Current - Input Bias | 15 nA |
| Voltage - Input Offset | 400 µV |
| Supplier Device Package | 14-PDIP |
| Number of Circuits | 4 |
| Voltage - Supply Span (Min) | 9 V |
| Voltage - Supply Span (Max) | 36 V |
