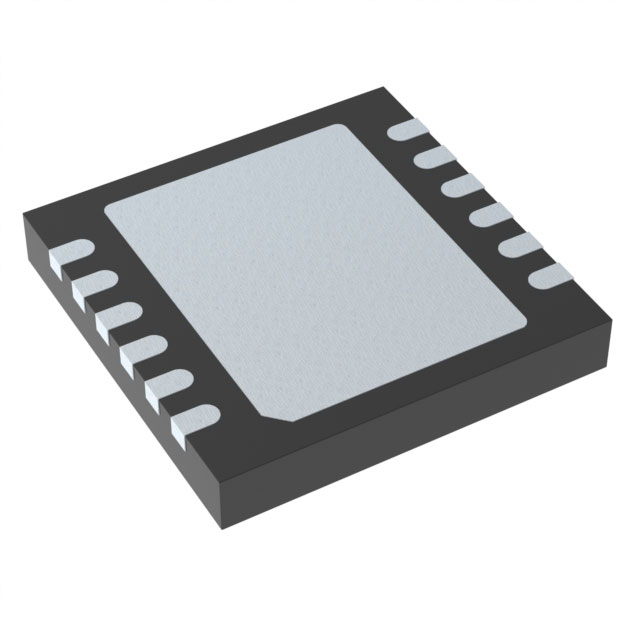

LTC6373HDFM#TRPBF
IC INST AMP 1 CIRCUIT 12DFNManufacturer: Analog Devices Inc.
Categories: Instrumentation, Op Amps, Buffer Amps
Quality Control: Learn More
Analog Devices Inc. LTC6373HDFM-TRPBF is a single-circuit instrumentation amplifier featuring rail-to-rail output. This device offers a low input bias current of 2 pA and a low input offset voltage of 92 µV, making it suitable for precision measurements. With a -3dB bandwidth of 7.5 MHz and a slew rate of 12 V/µs, it excels in applications requiring fast signal acquisition. The amplifier operates from a supply voltage range of 9 V to 36 V and consumes a quiescent current of 4.4 mA. Its 12-DFN (4x4) wettable flank package with an exposed pad is designed for surface mounting. This component finds application in industrial automation, medical equipment, and test and measurement systems.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 12-WFDFN Exposed Pad |
| Output Type | Rail-to-Rail |
| Mounting Type | Surface Mount, Wettable Flank |
| Amplifier Type | Instrumentation |
| Operating Temperature | -40°C ~ 125°C |
| Current - Supply | 4.4mA |
| Slew Rate | 12V/µs |
| Current - Input Bias | 2 pA |
| Voltage - Input Offset | 92 µV |
| Supplier Device Package | 12-DFN (4x4) |
| Number of Circuits | 1 |
| Current - Output / Channel | 47 mA |
| -3db Bandwidth | 7.5 MHz |
| Voltage - Supply Span (Min) | 9 V |
| Voltage - Supply Span (Max) | 36 V |
