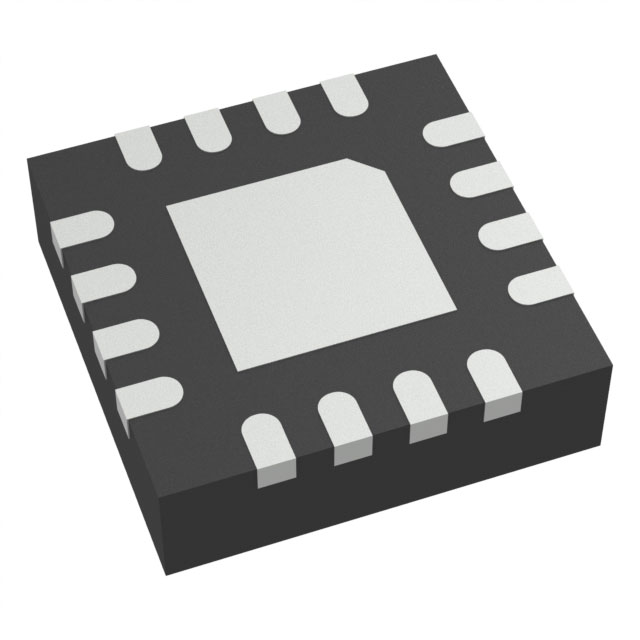

LTC6363HRD#PBF
IC OPAMP DIFF 1 CIRCUIT 16LFCSPManufacturer: Analog Devices Inc.
Categories: Instrumentation, Op Amps, Buffer Amps
Quality Control: Learn More
Analog Devices Inc. LTC6363HRD-PBF is a single-circuit differential amplifier featuring rail-to-rail output. This component offers a 35 MHz -3dB bandwidth and a 500 MHz gain bandwidth product, coupled with a 75V/µs slew rate. Designed for surface mounting within a 16-LFCSP (3x3) package, it operates with a supply current of 1.9 mA and can accommodate a voltage supply span from 2.8 V to 11 V. The input bias current is 100 nA, and the input offset voltage is 25 µV, with an output current capability of 55 mA per channel. This device is suitable for applications in instrumentation and buffer amplification, operating across a temperature range of -40°C to 125°C.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 10 week(s)Product Status: Last Time BuyPackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | 16-WFQFN Exposed Pad, CSP |
| Output Type | Differential, Rail-to-Rail |
| Mounting Type | Surface Mount |
| Amplifier Type | Differential |
| Operating Temperature | -40°C ~ 125°C |
| Current - Supply | 1.9mA |
| Slew Rate | 75V/µs |
| Gain Bandwidth Product | 500 MHz |
| Current - Input Bias | 100 nA |
| Voltage - Input Offset | 25 µV |
| Supplier Device Package | 16-LFCSP (3x3) |
| Number of Circuits | 1 |
| Current - Output / Channel | 55 mA |
| -3db Bandwidth | 35 MHz |
| Voltage - Supply Span (Min) | 2.8 V |
| Voltage - Supply Span (Max) | 11 V |
