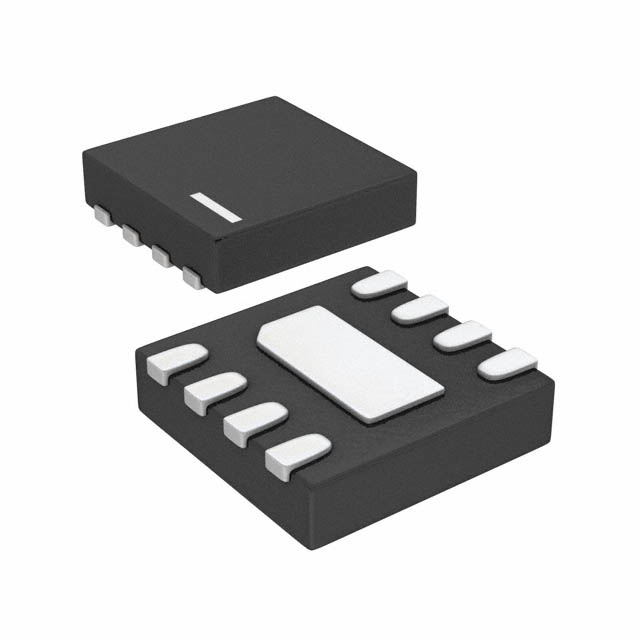

LTC6256IKC#TRPBF-ES
IC OPAMP GP 2 CIRCUIT 8UTDFNManufacturer: Analog Devices Inc.
Categories: Instrumentation, Op Amps, Buffer Amps
Quality Control: Learn More
Analog Devices Inc. LTC6256IKC-TRPBF-ES is a dual, general-purpose operational amplifier featuring rail-to-rail output. This component is designed for applications requiring low power consumption, with a quiescent current of 65µA per channel. It offers a gain bandwidth product of 6.5 MHz and a -3dB bandwidth of 4.5 MHz, coupled with a slew rate of 1.8V/µs. The input bias current is specified at 5 nA, and the input offset voltage is 100 µV. The output current capability is 35 mA per channel. Operating over a supply voltage range of 1.8V to 5.25V, the LTC6256IKC-TRPBF-ES is housed in an 8-UTDFN (2x2) exposed pad package, suitable for surface mounting. Its performance characteristics make it suitable for instrumentation and buffering applications across various industries. The component is supplied in tape and reel packaging.
Additional Information
Series: -RoHS Status: unknownManufacturer Lead Time: No lead time information availableProduct Status: DiscontinuedPackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 8-UFDFN Exposed Pad |
| Output Type | Rail-to-Rail |
| Mounting Type | Surface Mount |
| Amplifier Type | General Purpose |
| Operating Temperature | -40°C ~ 85°C |
| Current - Supply | 65µA (x2 Channels) |
| Slew Rate | 1.8V/µs |
| Gain Bandwidth Product | 6.5 MHz |
| Current - Input Bias | 5 nA |
| Voltage - Input Offset | 100 µV |
| Supplier Device Package | 8-UTDFN (2x2) |
| Number of Circuits | 2 |
| Current - Output / Channel | 35 mA |
| -3db Bandwidth | 4.5 MHz |
| Voltage - Supply Span (Min) | 1.8 V |
| Voltage - Supply Span (Max) | 5.25 V |
