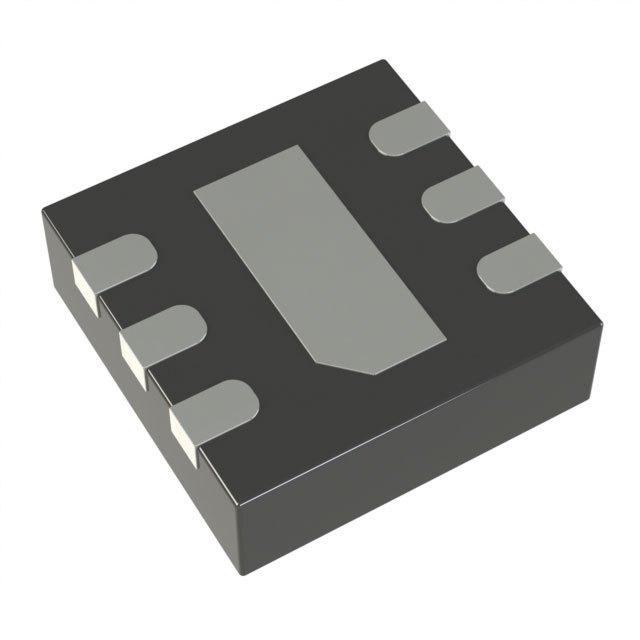

LTC6255CDC#PBF
IC OPAMP GP 1 CIRCUIT 6DFNManufacturer: Analog Devices Inc.
Categories: Instrumentation, Op Amps, Buffer Amps
Quality Control: Learn More
The Analog Devices Inc. LTC6255CDC-PBF is a single-circuit, general-purpose operational amplifier designed for demanding applications. This device features rail-to-rail output, enabling maximum output voltage swing. With a low supply current of 65µA and a high gain bandwidth product of 6.5 MHz, it offers efficient operation. The amplifier boasts a typical input bias current of 5 nA and a low input offset voltage of 100 µV, ensuring signal integrity. Its 35 mA output current capability and a slew rate of 1.8 V/µs make it suitable for driving moderate loads. The LTC6255CDC-PBF operates from a wide supply voltage range of 1.8 V to 5.25 V and is packaged in a compact 6-DFN (2x2) surface-mount configuration. This component is commonly utilized in test and measurement equipment, industrial control systems, and portable electronics.
Additional Information
Series: -RoHS Status: unknownManufacturer Lead Time: No lead time information availableProduct Status: DiscontinuedPackaging: StripDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Strip |
| Package / Case | 6-WFDFN Exposed Pad |
| Output Type | Rail-to-Rail |
| Mounting Type | Surface Mount |
| Amplifier Type | General Purpose |
| Operating Temperature | 0°C ~ 70°C |
| Current - Supply | 65µA |
| Slew Rate | 1.8V/µs |
| Gain Bandwidth Product | 6.5 MHz |
| Current - Input Bias | 5 nA |
| Voltage - Input Offset | 100 µV |
| Supplier Device Package | 6-DFN (2x2) |
| Number of Circuits | 1 |
| Current - Output / Channel | 35 mA |
| -3db Bandwidth | 4.5 MHz |
| Voltage - Supply Span (Min) | 1.8 V |
| Voltage - Supply Span (Max) | 5.25 V |
