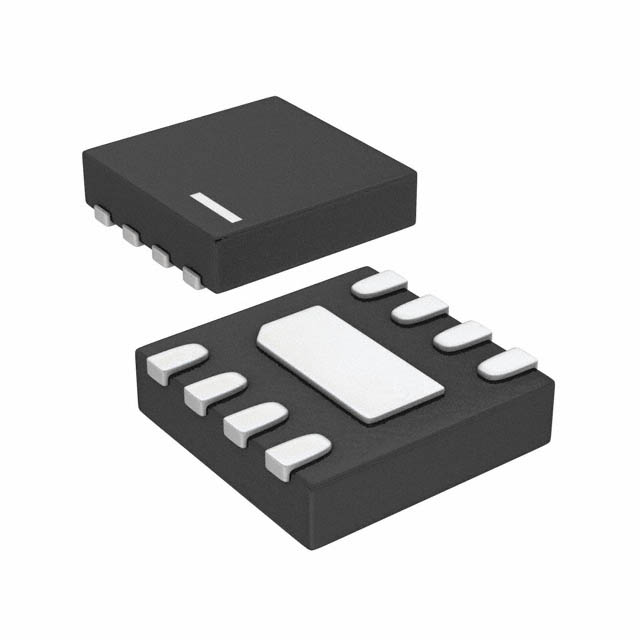

LTC6247CKC#TRPBF
IC OPAMP GP 2 CIRCUIT 8UTDFNManufacturer: Analog Devices Inc.
Categories: Instrumentation, Op Amps, Buffer Amps
Quality Control: Learn More
Analog Devices Inc. LTC6247CKC-TRPBF is a dual, general-purpose operational amplifier featuring rail-to-rail output. This component boasts a gain bandwidth product of 180 MHz and a -3dB bandwidth of 120 MHz, coupled with a high slew rate of 90V/µs. Designed for surface mount applications, it is supplied in an 8-UTDFN (2x2) package on tape and reel. The input bias current is 400 nA, with an input offset voltage of 100 µV. This amplifier supports a supply voltage span from 2.5V to 5.25V, drawing a typical current of 1.25mA per channel, and can deliver up to 100mA output current per channel. The LTC6247CKC-TRPBF is suitable for instrumentation and buffer amplifier applications across a 0°C to 70°C operating temperature range.
Additional Information
Series: -RoHS Status: unknownManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 8-UFDFN Exposed Pad |
| Output Type | Rail-to-Rail |
| Mounting Type | Surface Mount |
| Amplifier Type | General Purpose |
| Operating Temperature | 0°C ~ 70°C |
| Current - Supply | 1.25mA (x2 Channels) |
| Slew Rate | 90V/µs |
| Gain Bandwidth Product | 180 MHz |
| Current - Input Bias | 400 nA |
| Voltage - Input Offset | 100 µV |
| Supplier Device Package | 8-UTDFN (2x2) |
| Number of Circuits | 2 |
| Current - Output / Channel | 100 mA |
| -3db Bandwidth | 120 MHz |
| Voltage - Supply Span (Min) | 2.5 V |
| Voltage - Supply Span (Max) | 5.25 V |
