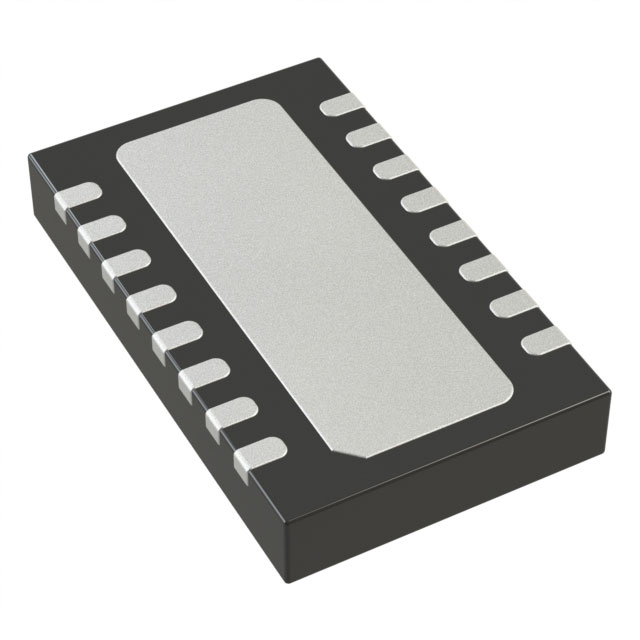

LTC6242HVCDHC#PBF
IC CMOS 4 CIRCUIT 16DFNManufacturer: Analog Devices Inc.
Categories: Instrumentation, Op Amps, Buffer Amps
Quality Control: Learn More
CMOS Amplifier 4 Circuit Rail-to-Rail 16-DFN (5x3)
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 10 week(s)Product Status: ActivePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | 16-WFDFN Exposed Pad |
| Output Type | Rail-to-Rail |
| Mounting Type | Surface Mount |
| Amplifier Type | CMOS |
| Operating Temperature | 0°C ~ 70°C |
| Current - Supply | 2.5mA (x4 Channels) |
| Slew Rate | 10V/µs |
| Gain Bandwidth Product | 18 MHz |
| Current - Input Bias | 0.5 pA |
| Voltage - Input Offset | 60 µV |
| Supplier Device Package | 16-DFN (5x3) |
| Number of Circuits | 4 |
| Current - Output / Channel | 30 mA |
| Voltage - Supply Span (Min) | 2.8 V |
| Voltage - Supply Span (Max) | 11 V |
Request a Quote
