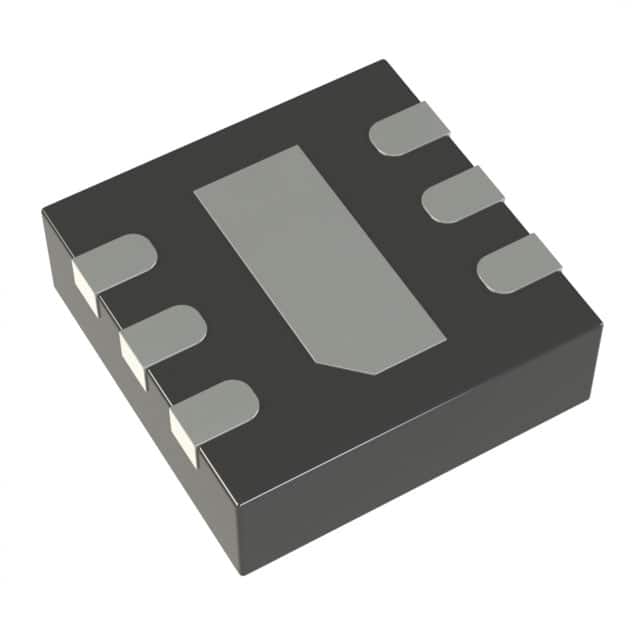

LTC6226IDC#TRPBF
IC OPAMP GP 1 CIRCUIT 6DFNManufacturer: Analog Devices Inc.
Categories: Instrumentation, Op Amps, Buffer Amps
Quality Control: Learn More
Analog Devices Inc. LTC6226IDC-TRPBF is a single-circuit general-purpose operational amplifier featuring rail-to-rail output and input. This device offers a 420 MHz gain bandwidth product and a 330 MHz -3dB bandwidth, coupled with a high slew rate of 180V/µs, making it suitable for demanding signal conditioning applications. The LTC6226IDC-TRPBF operates from a 2.8V to 11.75V supply span with a low quiescent current of 5.5mA. It exhibits a low input offset voltage of 20 µV and a manageable input bias current of 8.4 µA. The output current capability is 64 mA. Packaged in a 6-DFN (2x2) with an exposed pad, this component is designed for surface mounting and operates across a temperature range of -40°C to 85°C. It finds application in areas such as medical instrumentation and high-speed data acquisition.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 10 week(s)Product Status: Last Time BuyPackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 6-WFDFN Exposed Pad |
| Output Type | Rail-to-Rail |
| Mounting Type | Surface Mount |
| Amplifier Type | General Purpose |
| Operating Temperature | -40°C ~ 85°C |
| Current - Supply | 5.5mA |
| Slew Rate | 180V/µs |
| Gain Bandwidth Product | 420 MHz |
| Current - Input Bias | 8.4 µA |
| Voltage - Input Offset | 20 µV |
| Supplier Device Package | 6-DFN (2x2) |
| Number of Circuits | 1 |
| Current - Output / Channel | 64 mA |
| -3db Bandwidth | 330 MHz |
| Voltage - Supply Span (Min) | 2.8 V |
| Voltage - Supply Span (Max) | 11.75 V |
