LTC6226HDC#TRPBF
IC OPAMP GP 1 CIRCUIT 6DFNManufacturer: Analog Devices Inc.
Categories: Instrumentation, Op Amps, Buffer Amps
Quality Control: Learn More

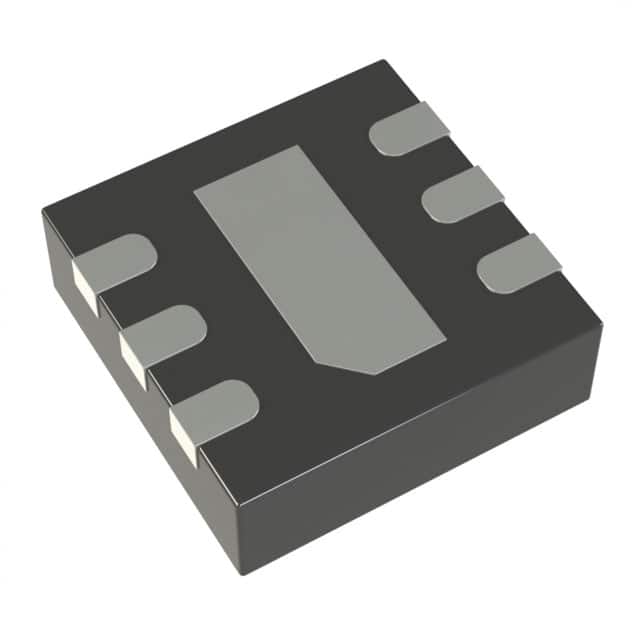

Analog Devices Inc. LTC6226HDC-TRPBF is a single-circuit, general-purpose operational amplifier designed for demanding applications. This device features a high gain bandwidth product of 420 MHz and a -3dB bandwidth of 330 MHz, coupled with a rapid slew rate of 180V/µs, enabling efficient signal amplification. Its rail-to-rail output stage maximizes dynamic range. The LTC6226HDC-TRPBF operates from a supply voltage as low as 2.8V up to 11.75V, drawing a quiescent current of just 5.5mA. It boasts a low input offset voltage of 20 µV and an input bias current of 8.4 µA. The component is provided in a compact 6-DFN (2x2) surface mount package with an exposed pad for enhanced thermal performance, supplied on tape and reel. This amplifier is suitable for use in industrial, medical, and communication systems requiring high-speed, precision amplification.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 10 week(s)Product Status: Last Time BuyPackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 6-WFDFN Exposed Pad |
| Output Type | Rail-to-Rail |
| Mounting Type | Surface Mount |
| Amplifier Type | General Purpose |
| Operating Temperature | -40°C ~ 125°C |
| Current - Supply | 5.5mA |
| Slew Rate | 180V/µs |
| Gain Bandwidth Product | 420 MHz |
| Current - Input Bias | 8.4 µA |
| Voltage - Input Offset | 20 µV |
| Supplier Device Package | 6-DFN (2x2) |
| Number of Circuits | 1 |
| Current - Output / Channel | 64 mA |
| -3db Bandwidth | 330 MHz |
| Voltage - Supply Span (Min) | 2.8 V |
| Voltage - Supply Span (Max) | 11.75 V |
