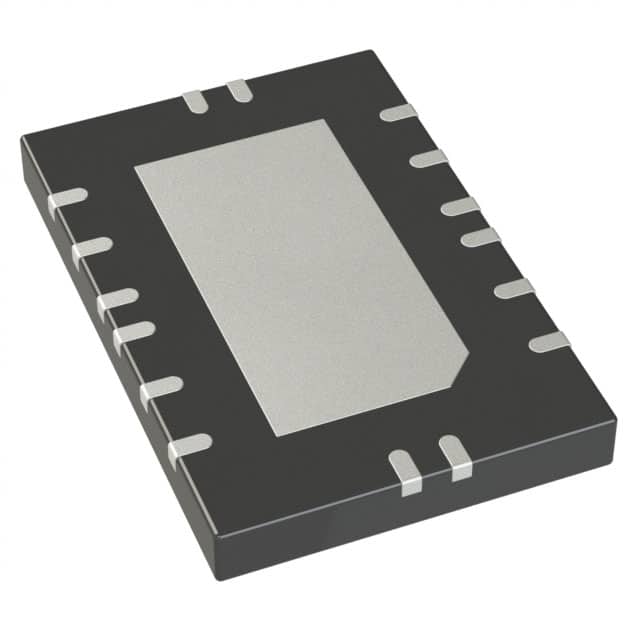

LTC6091HUFE#TRPBF
IC OPAMP GP 2 CIRCUIT 32QFNManufacturer: Analog Devices Inc.
Categories: Instrumentation, Op Amps, Buffer Amps
Quality Control: Learn More
Analog Devices Inc. LTC6091HUFE-TRPBF is a general-purpose operational amplifier featuring two independent channels. This component offers rail-to-rail output capability and operates with a wide supply voltage span from 9.5V to 140V. Key specifications include a 12 MHz gain bandwidth product and a 21 V/µs slew rate, making it suitable for demanding applications. The input bias current is a minimal 3 pA, and each channel can deliver up to 90 mA of output current. The device draws approximately 2.8 mA supply current per channel. It is supplied in a 32(16)-QFN (4x6) package, designed for surface mounting. The LTC6091HUFE-TRPBF is utilized in industrial automation, medical instrumentation, and high-voltage control systems. Operating temperature range is -40°C to 125°C.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 10 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 16-WFQFN Exposed Pad |
| Output Type | Rail-to-Rail |
| Mounting Type | Surface Mount |
| Amplifier Type | General Purpose |
| Operating Temperature | -40°C ~ 125°C |
| Current - Supply | 2.8mA (x2 Channels) |
| Slew Rate | 21V/µs |
| Gain Bandwidth Product | 12 MHz |
| Current - Input Bias | 3 pA |
| Voltage - Input Offset | 330 µV |
| Supplier Device Package | 32(16)-QFN (4x6) |
| Number of Circuits | 2 |
| Current - Output / Channel | 90 mA |
| Voltage - Supply Span (Min) | 9.5 V |
| Voltage - Supply Span (Max) | 140 V |
