LTC2052HS#TRPBF
IC OPAMP ZERO-DRIFT 4 CIRC 14SOManufacturer: Analog Devices Inc.
Categories: Instrumentation, Op Amps, Buffer Amps
Quality Control: Learn More

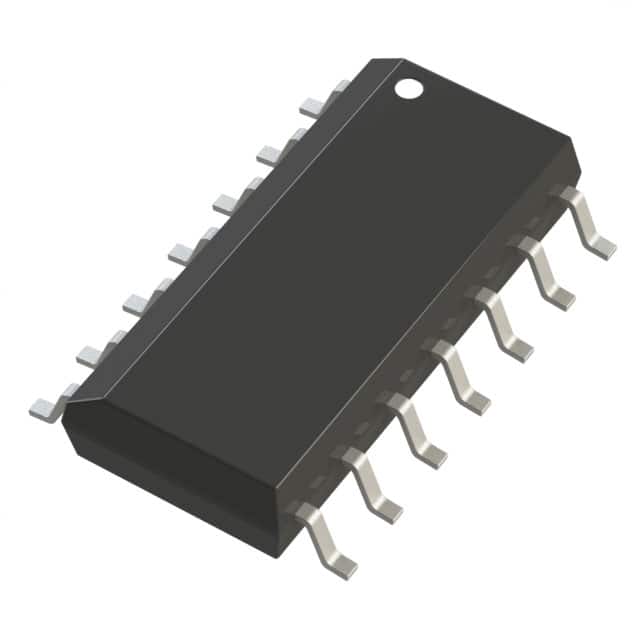

Analog Devices Inc. LTC2052HS-TRPBF is a quad-channel chopper (zero-drift) operational amplifier. This device offers precise DC accuracy with a low input offset voltage of 1 µV and minimal input bias current of 90 pA. Featuring rail-to-rail output capability, it maintains performance across the supply voltage range of 2.7 V to 5.5 V. The LTC2052HS-TRPBF boasts a 3 MHz gain bandwidth product and a 2 V/µs slew rate, powered by a typical 1 mA supply current per channel. Its surface mountable 14-SOIC package (0.154" width) is supplied on tape and reel. This zero-drift amplifier is well-suited for applications requiring high accuracy, such as medical instrumentation, precision signal conditioning, and sensor interfacing in industrial and automotive environments.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 10 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 14-SOIC (0.154"", 3.90mm Width) |
| Output Type | Rail-to-Rail |
| Mounting Type | Surface Mount |
| Amplifier Type | Chopper (Zero-Drift) |
| Operating Temperature | -40°C ~ 125°C |
| Current - Supply | 1mA (x4 Channels) |
| Slew Rate | 2V/µs |
| Gain Bandwidth Product | 3 MHz |
| Current - Input Bias | 90 pA |
| Voltage - Input Offset | 1 µV |
| Supplier Device Package | 14-SO |
| Number of Circuits | 4 |
| Voltage - Supply Span (Min) | 2.7 V |
| Voltage - Supply Span (Max) | 5.5 V |
