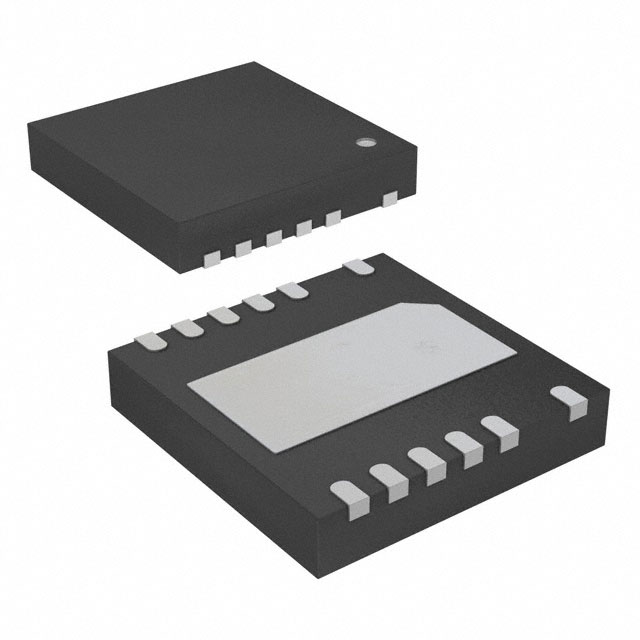

LT6376IDF#PBF
IC OPAMP GP 1 CIRCUIT 14DFNManufacturer: Analog Devices Inc.
Categories: Instrumentation, Op Amps, Buffer Amps
Quality Control: Learn More
General Purpose Amplifier 1 Circuit Rail-to-Rail 14-DFN (4x4)
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 10 week(s)Product Status: ActivePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | 14-WFDFN Exposed Pad, 12 Leads |
| Output Type | Rail-to-Rail |
| Mounting Type | Surface Mount |
| Amplifier Type | General Purpose |
| Operating Temperature | -40°C ~ 85°C |
| Current - Supply | 350µA |
| Slew Rate | 4.1V/µs |
| Voltage - Input Offset | 50 µV |
| Supplier Device Package | 14-DFN (4x4) |
| Number of Circuits | 1 |
| Current - Output / Channel | 28 mA |
| -3db Bandwidth | 300 kHz |
| Voltage - Supply Span (Min) | 3 V |
| Voltage - Supply Span (Max) | 50 V |
