LT6375IDF#PBF
IC OPAMP DIFF 1 CIRCUIT 14DFNManufacturer: Analog Devices Inc.
Categories: Instrumentation, Op Amps, Buffer Amps
Quality Control: Learn More
Analog Devices Inc. LT6375IDF-PBF is a single-circuit differential amplifier featuring rail-to-rail output. This component is designed for demanding applications requiring precise signal conditioning, offering a low input offset voltage of 120 µV and a wide supply voltage span from 3 V to 50 V. With a -3dB bandwidth of 575 kHz and a slew rate of 2.4 V/µs, it delivers robust performance for signal processing.

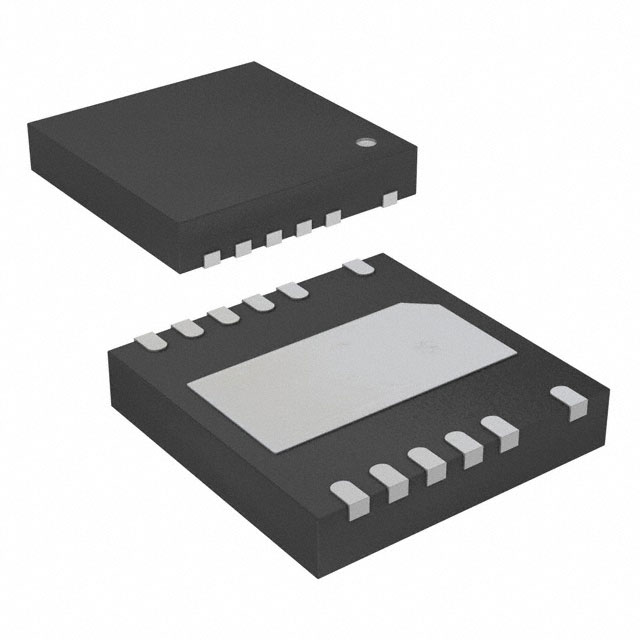

The LT6375IDF-PBF operates with a typical supply current of 350 µA and can provide up to 28 mA of output current per channel. Its 14-DFN (4x4) package with an exposed pad facilitates efficient thermal management and surface mounting. This amplifier is suitable for use in industrial automation, medical instrumentation, and test and measurement equipment.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 10 week(s)Product Status: ActivePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | 14-WFDFN Exposed Pad, 12 Leads |
| Output Type | Rail-to-Rail |
| Mounting Type | Surface Mount |
| Amplifier Type | Differential |
| Operating Temperature | -40°C ~ 85°C |
| Current - Supply | 350µA |
| Slew Rate | 2.4V/µs |
| Voltage - Input Offset | 120 µV |
| Supplier Device Package | 14-DFN (4x4) |
| Number of Circuits | 1 |
| Current - Output / Channel | 28 mA |
| -3db Bandwidth | 575 kHz |
| Voltage - Supply Span (Min) | 3 V |
| Voltage - Supply Span (Max) | 50 V |
