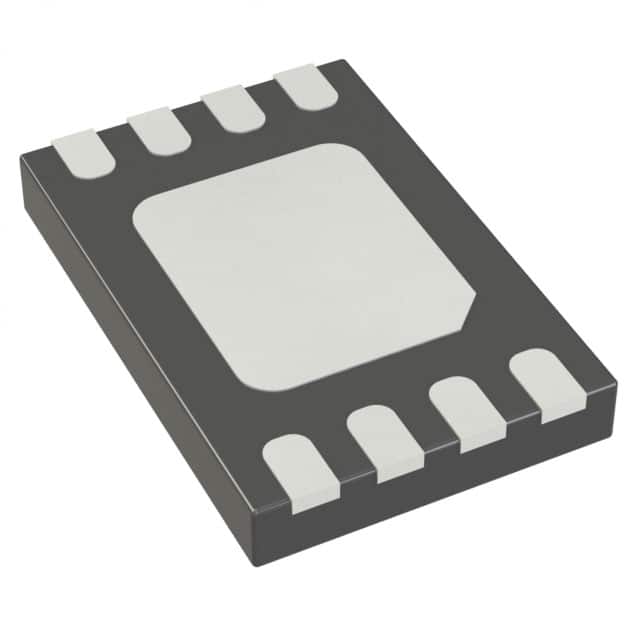

LT6118HDCB#TRPBF
IC CURRENT SENSE 1 CIRCUIT 8DFNManufacturer: Analog Devices Inc.
Categories: Instrumentation, Op Amps, Buffer Amps
Quality Control: Learn More
The Analog Devices Inc. LT6118HDCB-TRPBF is a single-circuit current sense amplifier designed for precise measurement in demanding applications. Operating within a wide supply voltage range of 2.7V to 60V, this component features a low input bias current of 60 nA and an offset voltage of 200 µV, ensuring accurate readings even with small current levels. Its 1 MHz gain bandwidth product and 450 µA supply current make it suitable for power-sensitive designs. The open-drain output type provides flexibility in circuit design. Housed in an 8-DFN (2x3) exposed pad package and supplied on tape and reel, the LT6118HDCB-TRPBF is ideal for surface mount assembly. This device finds application in industrial control, power management, and battery monitoring systems.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 10 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 8-WFDFN Exposed Pad |
| Output Type | Open Drain |
| Mounting Type | Surface Mount |
| Amplifier Type | Current Sense |
| Operating Temperature | -40°C ~ 125°C |
| Current - Supply | 450µA |
| Slew Rate | - |
| Gain Bandwidth Product | 1 MHz |
| Current - Input Bias | 60 nA |
| Voltage - Input Offset | 200 µV |
| Supplier Device Package | 8-DFN (2x3) |
| Number of Circuits | 1 |
| Voltage - Supply Span (Min) | 2.7 V |
| Voltage - Supply Span (Max) | 60 V |
