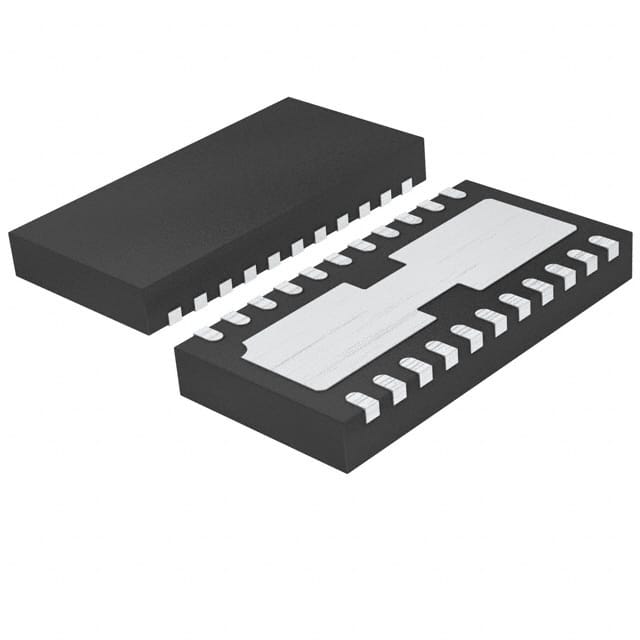

LT6017IDJC#TRPBF
IC OPAMP GP 4 CIRCUIT 22DFNManufacturer: Analog Devices Inc.
Categories: Instrumentation, Op Amps, Buffer Amps
Quality Control: Learn More
The Analog Devices Inc. LT6017IDJC-TRPBF from the LT® series is a general-purpose operational amplifier featuring four independent circuits. This component offers rail-to-rail output capability and is housed in a 22-DFN (6x3) exposed pad package, suitable for surface mount applications. Key specifications include a low input bias current of 2 nA, a high gain bandwidth product of 3.3 MHz, and a slew rate of 0.75 V/µs. The device operates across a wide supply voltage range from 3 V to 50 V. With a low input offset voltage of 50 µV and a quiescent current of 315 µA per channel, this amplifier is designed for demanding applications in industries such as industrial automation, medical instrumentation, and automotive systems. The LT6017IDJC-TRPBF is supplied in tape and reel packaging.
Additional Information
Series: LT®RoHS Status: ROHS3 CompliantManufacturer Lead Time: 20 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 22-WFDFN Exposed Pad |
| Output Type | Rail-to-Rail |
| Mounting Type | Surface Mount |
| Amplifier Type | General Purpose |
| Operating Temperature | -40°C ~ 85°C |
| Current - Supply | 315µA (x4 Channels) |
| Slew Rate | 0.75V/µs |
| Gain Bandwidth Product | 3.3 MHz |
| Current - Input Bias | 2 nA |
| Voltage - Input Offset | 50 µV |
| Supplier Device Package | 22-DFN (6x3) |
| Number of Circuits | 4 |
| Current - Output / Channel | 30 mA |
| Voltage - Supply Span (Min) | 3 V |
| Voltage - Supply Span (Max) | 50 V |
