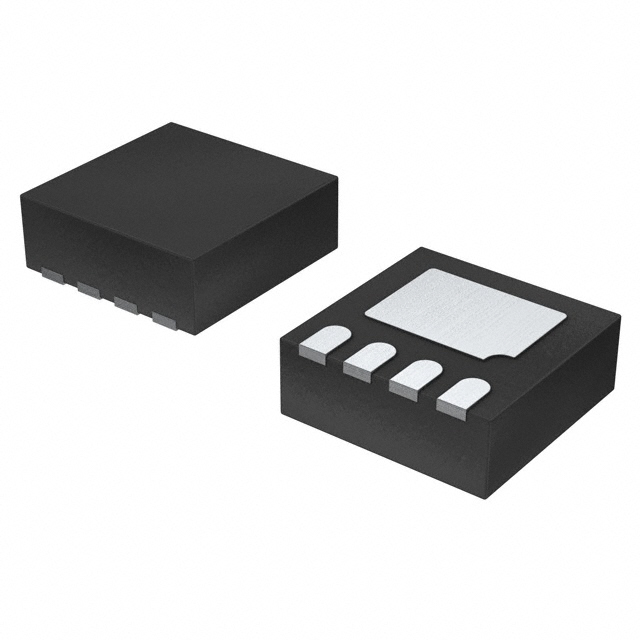

LT6003HDC
IC OPAMP GP 1 CIRCUIT 4DFNManufacturer: Analog Devices Inc.
Categories: Instrumentation, Op Amps, Buffer Amps
Quality Control: Learn More
Analog Devices Inc. LT6003HDC is a general-purpose operational amplifier featuring a single circuit in a compact 4-DFN (2x2) package. This device offers rail-to-rail output capabilities, making it suitable for applications requiring maximum output voltage swing. Key specifications include a low input bias current of 40 pA and a minimal supply current of 1.25 µA, contributing to power efficiency. The amplifier boasts a gain bandwidth product of 3 kHz and a slew rate of 0.0013 V/µs. With an input offset voltage of 300 µV, it provides accurate signal amplification. The operating temperature range is -40°C to 125°C, enabling deployment in demanding environments. This component is typically utilized in instrumentation and buffer amplifier applications. The LT6003HDC is supplied in tubes for surface mount assembly.
Additional Information
Series: -RoHS Status: unknownManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TubeDownload Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | 4-WFSFN Exposed Pad |
| Output Type | Rail-to-Rail |
| Mounting Type | Surface Mount |
| Amplifier Type | General Purpose |
| Operating Temperature | -40°C ~ 125°C |
| Current - Supply | 1.25µA |
| Slew Rate | 0.0013V/µs |
| Gain Bandwidth Product | 3 kHz |
| Current - Input Bias | 40 pA |
| Voltage - Input Offset | 300 µV |
| Supplier Device Package | 4-DFN (2x2) |
| Number of Circuits | 1 |
| Current - Output / Channel | 9 mA |
| Voltage - Supply Span (Min) | 1.6 V |
| Voltage - Supply Span (Max) | 16 V |
