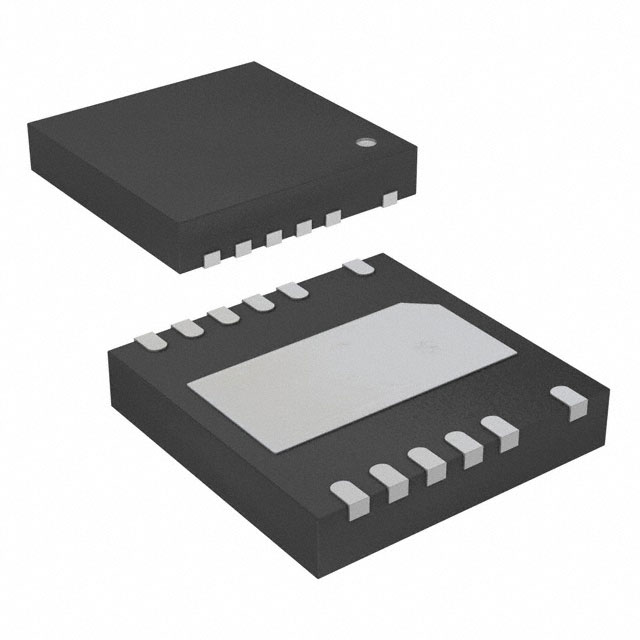

LT1997HDF-3#TRPBF
IC OPAMP GP 1 CIRCUIT 14DFNManufacturer: Analog Devices Inc.
Categories: Instrumentation, Op Amps, Buffer Amps
Quality Control: Learn More
Analog Devices Inc. LT1997HDF-3-TRPBF is a single-circuit, general-purpose operational amplifier designed for high-precision applications. This device features rail-to-rail output capability and operates over a wide voltage supply range from 3V to 50V. With a low input bias current of 5 nA and an input offset voltage of 20 µV, it is suitable for demanding instrumentation, signal conditioning, and data acquisition systems. The amplifier offers a 1.1 MHz -3dB bandwidth and a slew rate of 0.75V/µs, ensuring accurate signal reproduction. Packaged in a 14-lead, 4x4mm DFN (Exposed Pad) format for surface mounting, the LT1997HDF-3-TRPBF operates within a temperature range of -40°C to 125°C. This component is supplied on tape and reel for automated assembly processes.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 10 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 14-WFDFN Exposed Pad, 12 Leads |
| Output Type | Rail-to-Rail |
| Mounting Type | Surface Mount |
| Amplifier Type | General Purpose |
| Operating Temperature | -40°C ~ 125°C |
| Current - Supply | 350µA |
| Slew Rate | 0.75V/µs |
| Current - Input Bias | 5 nA |
| Voltage - Input Offset | 20 µV |
| Supplier Device Package | 14-DFN (4x4) |
| Number of Circuits | 1 |
| -3db Bandwidth | 1.1 MHz |
| Voltage - Supply Span (Min) | 3 V |
| Voltage - Supply Span (Max) | 50 V |
