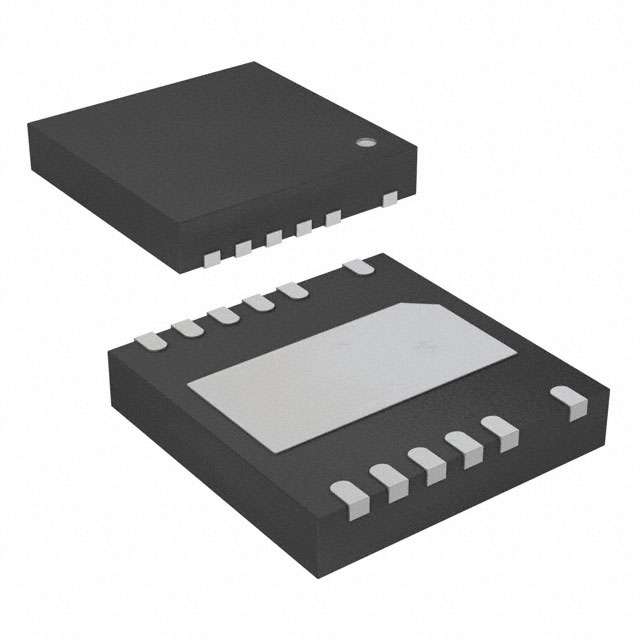

LT1997HDF-3#PBF
IC OPAMP GP 1 CIRCUIT 14DFNManufacturer: Analog Devices Inc.
Categories: Instrumentation, Op Amps, Buffer Amps
Quality Control: Learn More
Analog Devices Inc. LT1997HDF-3-PBF is a single-circuit, general-purpose operational amplifier featuring rail-to-rail output. This component offers a -3dB bandwidth of 1.1 MHz and a slew rate of 0.75V/µs. Designed for surface mounting, it utilizes a 14-DFN (4x4) package with an exposed pad and 12 leads, identified as 14-WFDFN Exposed Pad, 12 Leads. The device operates with a supply current of 350µA and can accommodate supply voltage spans from 3V to 50V. Input bias current is rated at 5 nA, with an input offset voltage of 20 µV. The output current capability is 28 mA. Operating temperature ranges from -40°C to 125°C. This component is suitable for applications in industrial and instrumentation sectors requiring precise amplification.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 10 week(s)Product Status: ActivePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | 14-WFDFN Exposed Pad, 12 Leads |
| Output Type | Rail-to-Rail |
| Mounting Type | Surface Mount |
| Amplifier Type | General Purpose |
| Operating Temperature | -40°C ~ 125°C |
| Current - Supply | 350µA |
| Slew Rate | 0.75V/µs |
| Current - Input Bias | 5 nA |
| Voltage - Input Offset | 20 µV |
| Supplier Device Package | 14-DFN (4x4) |
| Number of Circuits | 1 |
| Current - Output / Channel | 28 mA |
| -3db Bandwidth | 1.1 MHz |
| Voltage - Supply Span (Min) | 3 V |
| Voltage - Supply Span (Max) | 50 V |
