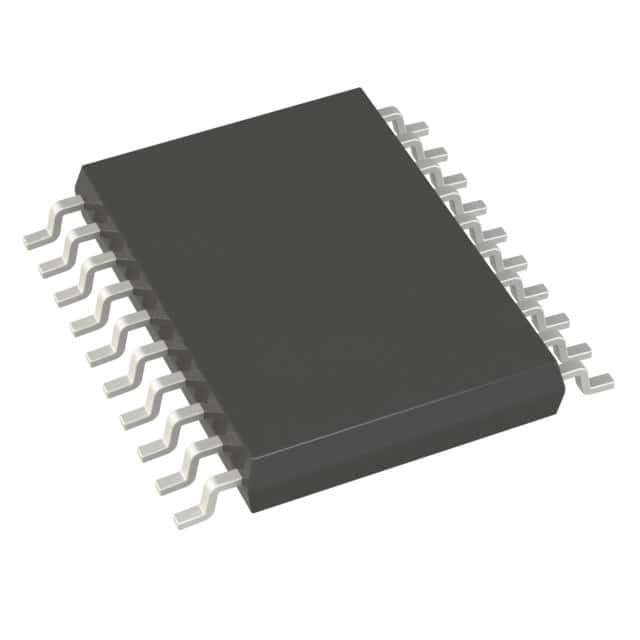

LT1970ACFE#TRPBF
IC OPAMP GP 1 CIRCUIT 20TSSOPManufacturer: Analog Devices Inc.
Categories: Instrumentation, Op Amps, Buffer Amps
Quality Control: Learn More
Analog Devices Inc. LT1970ACFE-TRPBF is a single-circuit, general-purpose operational amplifier. This device features a 3.6 MHz gain bandwidth product and a 1.6 V/µs slew rate, making it suitable for a variety of signal conditioning applications. The LT1970ACFE-TRPBF operates from a 5V to 36V supply span with a typical supply current of 7mA. Input bias current is rated at 160 nA, and input offset voltage is 200 µV. The component is housed in a 20-TSSOP-EP package with an exposed pad, designed for surface mounting. This operational amplifier finds application in industrial and instrumentation systems. The component is supplied on tape and reel.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 26 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 20-TSSOP (0.173"", 4.40mm Width) Exposed Pad |
| Output Type | - |
| Mounting Type | Surface Mount |
| Amplifier Type | General Purpose |
| Operating Temperature | 0°C ~ 70°C |
| Current - Supply | 7mA |
| Slew Rate | 1.6V/µs |
| Gain Bandwidth Product | 3.6 MHz |
| Current - Input Bias | 160 nA |
| Voltage - Input Offset | 200 µV |
| Supplier Device Package | 20-TSSOP-EP |
| Number of Circuits | 1 |
| Voltage - Supply Span (Min) | 5 V |
| Voltage - Supply Span (Max) | 36 V |
