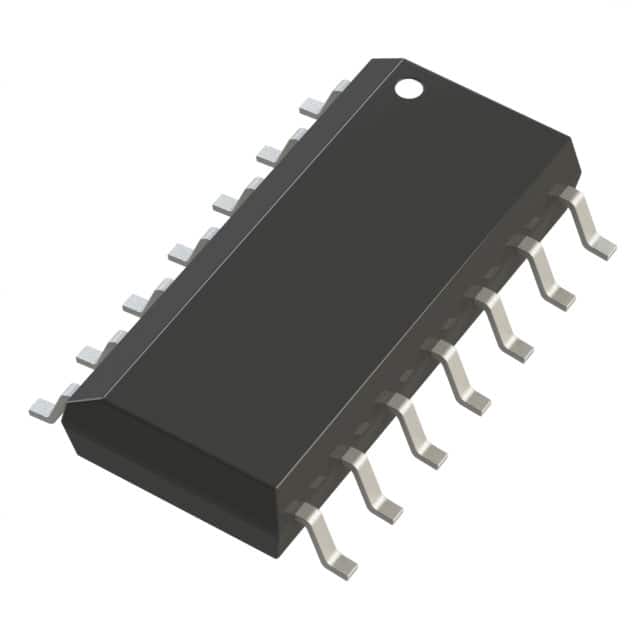

LT1882HS#TRPBF
IC OPAMP GP 4 CIRCUIT 14SOManufacturer: Analog Devices Inc.
Categories: Instrumentation, Op Amps, Buffer Amps
Quality Control: Learn More
Analog Devices Inc. LT® series LT1882HS-TRPBF is a four-circuit, general-purpose operational amplifier designed for surface mount applications. This component features rail-to-rail output capability and operates over a wide supply voltage span from 2.7V to 36V. With a gain bandwidth product of 1 MHz and a slew rate of 0.35V/µs, it offers robust performance for demanding applications. Key specifications include a low input bias current of 150 pA and a minimal input offset voltage of 30 µV. The device delivers an output current of 40 mA per channel with a quiescent current of 650µA per channel. Operating across a temperature range of -40°C to 125°C, the LT1882HS-TRPBF is supplied in a 14-SOIC package and comes on a tape and reel. This device finds utility in instrumentation and buffer amplifier applications across various industrial sectors.
Additional Information
Series: LT®RoHS Status: ROHS3 CompliantManufacturer Lead Time: 10 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 14-SOIC (0.154"", 3.90mm Width) |
| Output Type | Rail-to-Rail |
| Mounting Type | Surface Mount |
| Amplifier Type | General Purpose |
| Operating Temperature | -40°C ~ 125°C |
| Current - Supply | 650µA (x4 Channels) |
| Slew Rate | 0.35V/µs |
| Gain Bandwidth Product | 1 MHz |
| Current - Input Bias | 150 pA |
| Voltage - Input Offset | 30 µV |
| Supplier Device Package | 14-SO |
| Number of Circuits | 4 |
| Current - Output / Channel | 40 mA |
| Voltage - Supply Span (Min) | 2.7 V |
| Voltage - Supply Span (Max) | 36 V |
