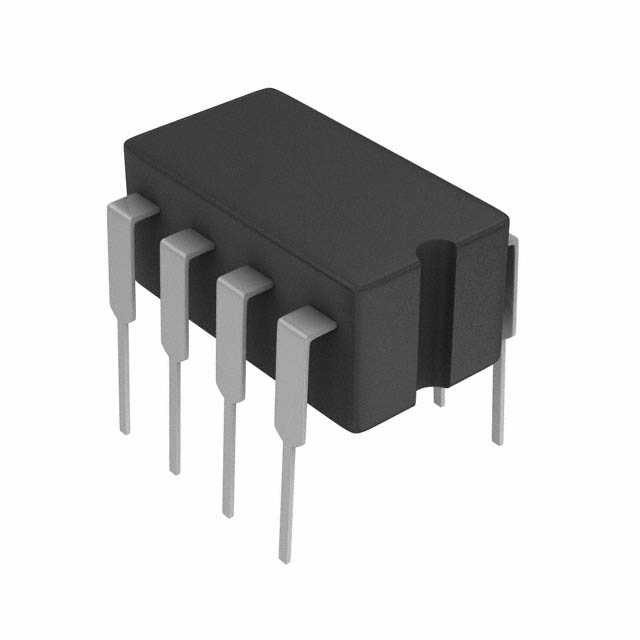

LT1213MJ8
IC OPAMP GP 2 CIRCUIT 8CERDIPManufacturer: Analog Devices Inc.
Categories: Instrumentation, Op Amps, Buffer Amps
Quality Control: Learn More
Analog Devices Inc. LT1213MJ8 is a dual general-purpose operational amplifier featuring a high gain bandwidth product of 28 MHz and a slew rate of 12V/µs. This amplifier is housed in an 8-CERDIP package and is designed for through-hole mounting. It operates with a supply voltage range from 2.5V to 36V. Key specifications include a low input bias current of 90 nA and an output current capability of 50 mA per channel. The device exhibits a typical quiescent current of 3.4mA per channel. It is qualified for operation across an extended temperature range of -55°C to 125°C. This component is suitable for applications in industrial instrumentation and buffering.
Additional Information
Series: LT®RoHS Status: unknownManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TubeDownload Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | 8-CDIP (0.300"", 7.62mm) |
| Output Type | - |
| Mounting Type | Through Hole |
| Amplifier Type | General Purpose |
| Operating Temperature | -55°C ~ 125°C |
| Current - Supply | 3.4mA (x2 Channels) |
| Slew Rate | 12V/µs |
| Gain Bandwidth Product | 28 MHz |
| Current - Input Bias | 90 nA |
| Voltage - Input Offset | 150 µV |
| Supplier Device Package | 8-CERDIP |
| Number of Circuits | 2 |
| Current - Output / Channel | 50 mA |
| Voltage - Supply Span (Min) | 2.5 V |
| Voltage - Supply Span (Max) | 36 V |
