LT1210IR#TRPBF
IC OPAMP CFA 1 CIRCUIT 7DDPAKManufacturer: Analog Devices Inc.
Categories: Instrumentation, Op Amps, Buffer Amps
Quality Control: Learn More

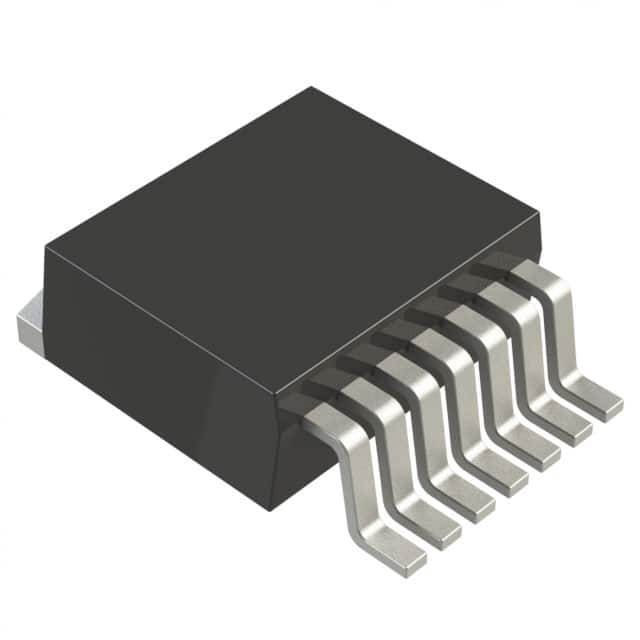

Analog Devices Inc. presents the LT1210IR-TRPBF, a high-speed current feedback amplifier. This single-circuit operational amplifier features a 35 MHz -3dB bandwidth and a remarkable 900 V/µs slew rate, enabling rapid signal transitions. Designed for surface mount applications, it utilizes a DDPAK-7 (TO-263-8) package. The LT1210IR-TRPBF delivers an impressive 2 A current output per channel, supporting a wide supply voltage range of 10 V to 30 V. Typical input offset voltage is 3 mV, and it operates within an ambient temperature range of -40°C to 85°C. This component is suitable for demanding applications in instrumentation and high-speed signal processing.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 10 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | TO-263-8, D2PAK (7 Leads + Tab), TO-263CA |
| Output Type | - |
| Mounting Type | Surface Mount |
| Amplifier Type | Current Feedback |
| Operating Temperature | -40°C ~ 85°C |
| Current - Supply | 50mA |
| Slew Rate | 900V/µs |
| Voltage - Input Offset | 3 mV |
| Supplier Device Package | DDPAK-7 |
| Number of Circuits | 1 |
| Current - Output / Channel | 2 A |
| -3db Bandwidth | 35 MHz |
| Voltage - Supply Span (Min) | 10 V |
| Voltage - Supply Span (Max) | 30 V |
