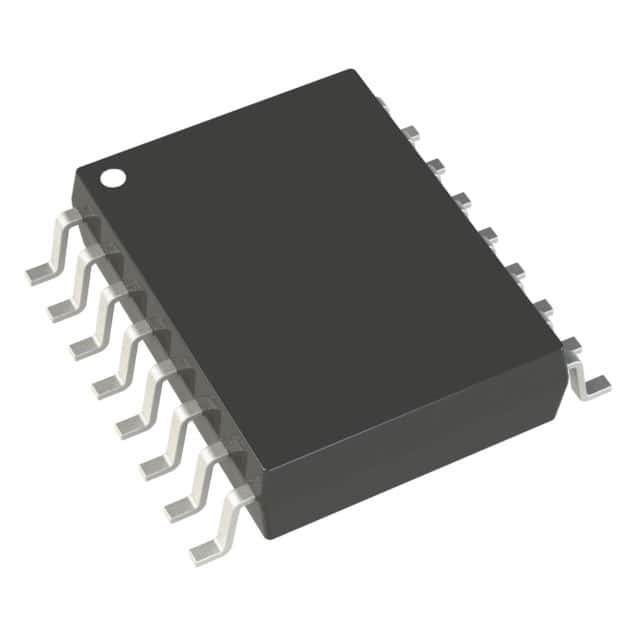

LT1101ISW#TRPBF
IC INST AMP 1 CIRCUIT 16SOManufacturer: Analog Devices Inc.
Categories: Instrumentation, Op Amps, Buffer Amps
Quality Control: Learn More
Analog Devices Inc. LT1101ISW-TRPBF is a single-circuit instrumentation amplifier designed for precision measurement applications. This device operates from a wide supply voltage range of 2.2V to 36V, with a typical quiescent current of 94µA. It features a low input bias current of 6 nA and an input offset voltage of 250 µV, contributing to accurate signal acquisition. The amplifier offers a gain bandwidth product of 37 kHz and a slew rate of 0.1V/µs. The LT1101ISW-TRPBF is supplied in a 16-SOIC (0.295", 7.50mm Width) surface mount package, delivered on tape and reel. This component is suitable for use in industrial, medical, and data acquisition systems requiring high-performance amplification.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 10 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 16-SOIC (0.295"", 7.50mm Width) |
| Output Type | - |
| Mounting Type | Surface Mount |
| Amplifier Type | Instrumentation |
| Operating Temperature | -40°C ~ 85°C |
| Current - Supply | 94µA |
| Slew Rate | 0.1V/µs |
| Gain Bandwidth Product | 37 kHz |
| Current - Input Bias | 6 nA |
| Voltage - Input Offset | 250 µV |
| Supplier Device Package | 16-SO |
| Number of Circuits | 1 |
| Voltage - Supply Span (Min) | 2.2 V |
| Voltage - Supply Span (Max) | 36 V |
Request a Quote
