LT1101CH
IC INST AMP 1 CIRCUIT TO5Manufacturer: Analog Devices Inc.
Categories: Instrumentation, Op Amps, Buffer Amps
Quality Control: Learn More

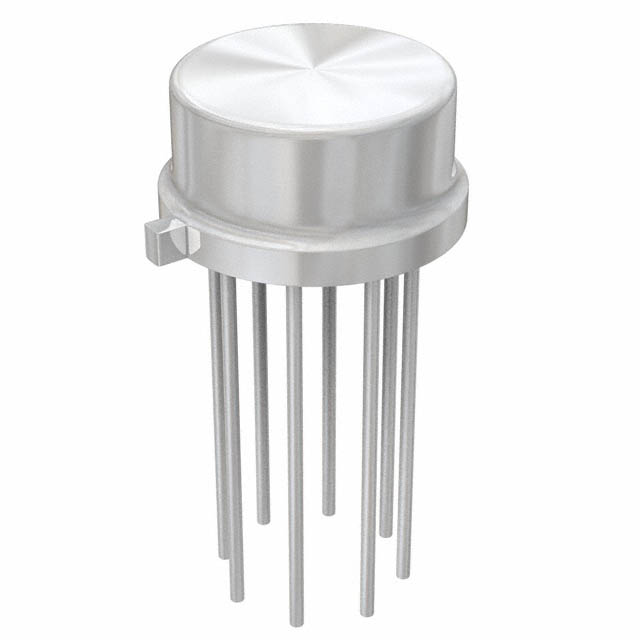

Analog Devices Inc. LT1101CH is a precision instrumentation amplifier featuring a single operational circuit within a TO-5 metal can package. This device offers a low input bias current of 6 nA and a low input offset voltage of 60 µV, making it suitable for high-accuracy signal conditioning applications. The LT1101CH operates with a supply current of 94 µA and boasts a gain-bandwidth product of 37 kHz. Its through-hole mounting type and 0°C to 70°C operating temperature range are ideal for industrial and medical equipment. The component supports a voltage supply span from 2.2 V to 36 V, with a slew rate of 0.1 V/µs. This instrumentation amplifier is commonly found in sensor interfaces and data acquisition systems.
Additional Information
Series: -RoHS Status: unknownManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | TO-205-8, TO-5-8 Metal Can |
| Output Type | - |
| Mounting Type | Through Hole |
| Amplifier Type | Instrumentation |
| Operating Temperature | 0°C ~ 70°C |
| Current - Supply | 94µA |
| Slew Rate | 0.1V/µs |
| Gain Bandwidth Product | 37 kHz |
| Current - Input Bias | 6 nA |
| Voltage - Input Offset | 60 µV |
| Supplier Device Package | TO-5 |
| Number of Circuits | 1 |
| Voltage - Supply Span (Min) | 2.2 V |
| Voltage - Supply Span (Max) | 36 V |
