LT1057ISW
IC OPAMP JFET 2 CIRCUIT 18SOManufacturer: Analog Devices Inc.
Categories: Instrumentation, Op Amps, Buffer Amps
Quality Control: Learn More

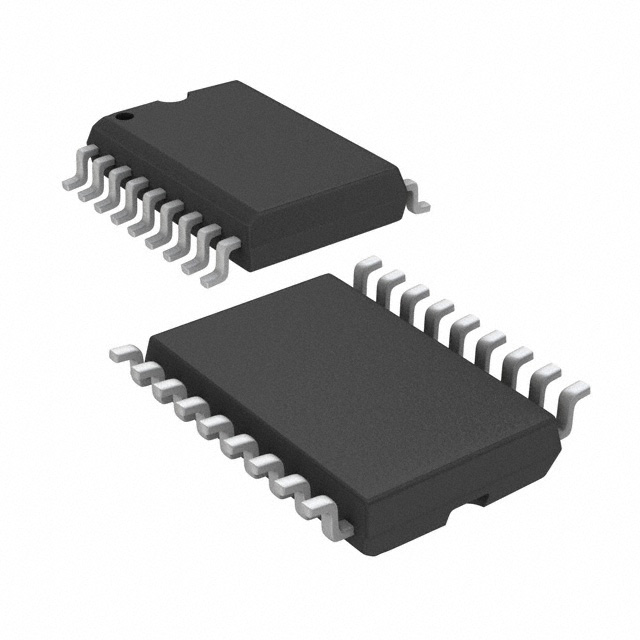

Analog Devices Inc. LT1057ISW is a dual JFET input operational amplifier designed for precision instrumentation and high-performance analog signal processing. This component features a low input bias current of 10 pA and a low input offset voltage of 300 µV, making it suitable for applications requiring minimal signal distortion. With a gain bandwidth product of 5 MHz and a slew rate of 13 V/µs, the LT1057ISW delivers excellent AC performance. It operates from a wide supply voltage range of 20 V to 36 V, with a typical quiescent current of 1.7 mA per channel. The device is housed in an 18-SOIC (0.295", 7.50mm Width) package, surface mountable for flexible board design. The LT1057ISW is commonly found in test and measurement equipment, medical devices, and high-fidelity audio systems.
Additional Information
Series: LT®RoHS Status: unknownManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | 18-SOIC (0.295"", 7.50mm Width) |
| Output Type | - |
| Mounting Type | Surface Mount |
| Amplifier Type | J-FET |
| Operating Temperature | -40°C ~ 85°C |
| Current - Supply | 1.7mA (x2 Channels) |
| Slew Rate | 13V/µs |
| Gain Bandwidth Product | 5 MHz |
| Current - Input Bias | 10 pA |
| Voltage - Input Offset | 300 µV |
| Supplier Device Package | 18-SO |
| Number of Circuits | 2 |
| Voltage - Supply Span (Min) | 20 V |
| Voltage - Supply Span (Max) | 36 V |
