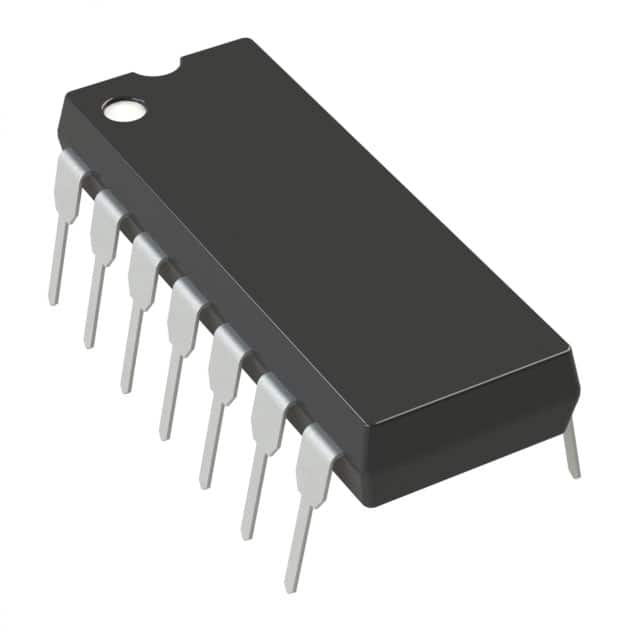

LT1024ACN#PBF
IC OPAMP GP 2 CIRCUIT 14DIPManufacturer: Analog Devices Inc.
Categories: Instrumentation, Op Amps, Buffer Amps
Quality Control: Learn More
Analog Devices Inc. LT® series comprises the LT1024ACN-PBF, a dual general-purpose operational amplifier. This component is designed for applications requiring low input bias current, specified at 25 pA, and a low input offset voltage of 15 µV. The device offers a typical quiescent current of 380µA per channel and supports a wide supply voltage range from 2.4V to 40V. Featuring a slew rate of 0.2V/µs, the LT1024ACN-PBF is housed in a 14-pin Dual In-line Package (PDIP) with a 0.300" pitch, suitable for through-hole mounting. Its robust design makes it suitable for instrumentation and precision analog signal processing across various industrial sectors.
Additional Information
Series: LT®RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | 14-DIP (0.300"", 7.62mm) |
| Output Type | - |
| Mounting Type | Through Hole |
| Amplifier Type | General Purpose |
| Operating Temperature | 0°C ~ 70°C |
| Current - Supply | 380µA (x2 Channels) |
| Slew Rate | 0.2V/µs |
| Current - Input Bias | 25 pA |
| Voltage - Input Offset | 15 µV |
| Supplier Device Package | 14-PDIP |
| Number of Circuits | 2 |
| Voltage - Supply Span (Min) | 2.4 V |
| Voltage - Supply Span (Max) | 40 V |
