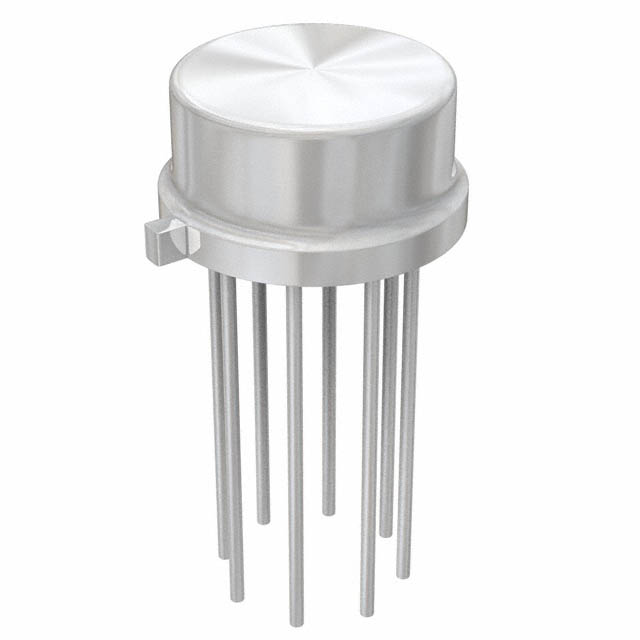

LT1013AMH/883
IC OPAMP GP 2 CIRCUIT TO5Manufacturer: Analog Devices Inc.
Categories: Instrumentation, Op Amps, Buffer Amps
Quality Control: Learn More
The Analog Devices Inc. LT1013AMH-883 is a dual general-purpose operational amplifier offering a 1 MHz gain bandwidth product. This LT® series component features low input bias current of 12 nA and a low input offset voltage of 40 µV, making it suitable for precision applications. Each channel provides a minimum output current of 20 mA with a typical supply current of 350 µA per channel. The amplifier exhibits a slew rate of 0.4 V/µs and operates over a wide temperature range of -55°C to 125°C. Designed for through-hole mounting, it is housed in an 8-pin TO-205-8 (TO-5) metal can package. This device is commonly found in instrumentation and buffer amplifier circuits across various industrial and aerospace applications. The supply voltage span ranges from 4 V to 44 V.
Additional Information
Series: LT®RoHS Status: unknownManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging:Download Free CAD Model:
Technical Details:
| Packaging | |
| Package / Case | TO-205-8, TO-5-8 Metal Can |
| Output Type | - |
| Mounting Type | Through Hole |
| Amplifier Type | General Purpose |
| Operating Temperature | -55°C ~ 125°C |
| Current - Supply | 350µA (x2 Channels) |
| Slew Rate | 0.4V/µs |
| Gain Bandwidth Product | 1 MHz |
| Current - Input Bias | 12 nA |
| Voltage - Input Offset | 40 µV |
| Supplier Device Package | TO-5 |
| Number of Circuits | 2 |
| Current - Output / Channel | 20 mA |
| Voltage - Supply Span (Min) | 4 V |
| Voltage - Supply Span (Max) | 44 V |
