HMC750LP4ETR
IC LIMITING 1 CIRCUIT 24SMTManufacturer: Analog Devices Inc.
Categories: Instrumentation, Op Amps, Buffer Amps
Quality Control: Learn More
Analog Devices Inc. HMC750LP4ETR is a single-circuit limiting amplifier designed for high-speed signal conditioning. This component features differential inputs and outputs, operating within a voltage supply range of 4.6V to 5.4V. With a typical supply current of 106mA, it is suitable for applications requiring precise signal level control. The HMC750LP4ETR is housed in a 24-QFN (4x4) exposed pad surface mount package, supplied on tape and reel for automated assembly. Its operational temperature range is -40°C to 85°C. This device finds application in various telecommunications and high-frequency test and measurement systems where consistent signal amplitude is critical.
Additional Information
Series: -RoHS Status: unknownManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |

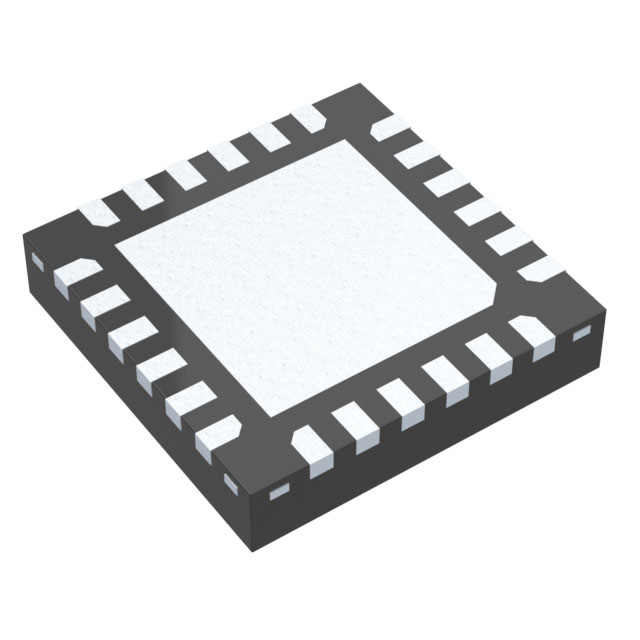

| Package / Case | 24-VFQFN Exposed Pad |
| Output Type | Differential |
| Mounting Type | Surface Mount |
| Amplifier Type | Limiting |
| Operating Temperature | -40°C ~ 85°C |
| Current - Supply | 106mA |
| Slew Rate | - |
| Voltage - Input Offset | 3 mV |
| Supplier Device Package | 24-QFN (4x4) |
| Number of Circuits | 1 |
| Voltage - Supply Span (Min) | 4.6 V |
| Voltage - Supply Span (Max) | 5.4 V |
