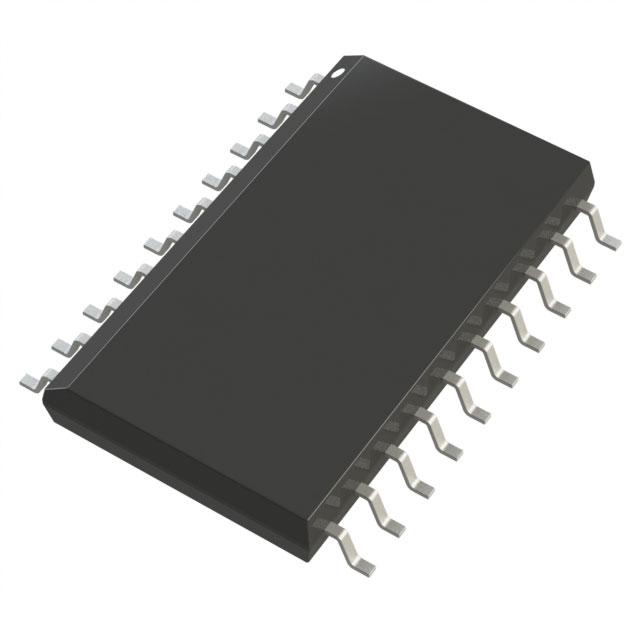

ADEL2020AR-20
IC OPAMP CF LN LP 60MA 20SOICManufacturer: Analog Devices Inc.
Categories: Instrumentation, Op Amps, Buffer Amps
Quality Control: Learn More
Analog Devices Inc. ADEL2020AR-20 is a single-circuit current feedback amplifier designed for demanding applications. This component features a 90 MHz -3dB bandwidth and a high slew rate of 500V/µs, enabling rapid signal processing. With a robust 60 mA output current capability and a low input bias current of 1 µA, it is well-suited for high-speed buffering and signal conditioning. The ADEL2020AR-20 operates from a 6V to 36V supply span, consuming only 6.8mA of quiescent current. Its 20-SOIC (0.295", 7.50mm Width) surface mount package ensures efficient board space utilization. This amplifier finds application in instrumentation and high-speed signal processing systems.
Additional Information
Series: -RoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | 20-SOIC (0.295"", 7.50mm Width) |
| Output Type | - |
| Mounting Type | Surface Mount |
| Amplifier Type | Current Feedback |
| Operating Temperature | -40°C ~ 85°C |
| Current - Supply | 6.8mA |
| Slew Rate | 500V/µs |
| Current - Input Bias | 1 µA |
| Voltage - Input Offset | 1.5 mV |
| Supplier Device Package | 20-SOIC |
| Number of Circuits | 1 |
| Current - Output / Channel | 60 mA |
| -3db Bandwidth | 90 MHz |
| Voltage - Supply Span (Min) | 6 V |
| Voltage - Supply Span (Max) | 36 V |
