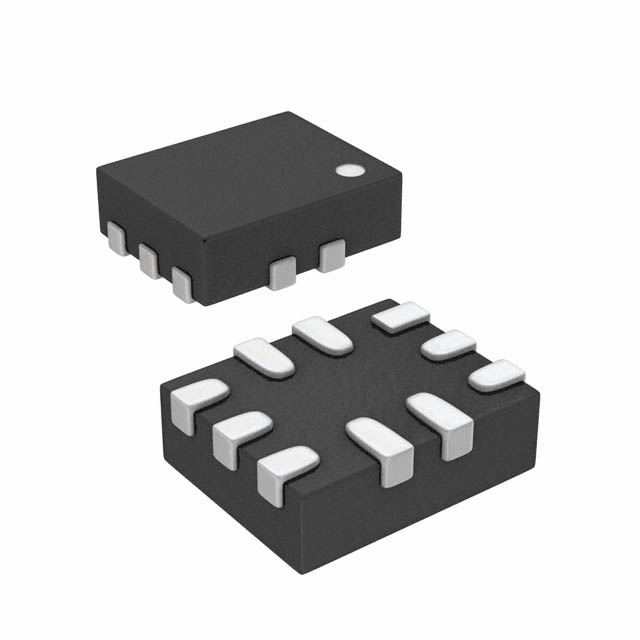

ADA4691-2ACPZ-RL
IC OPAMP GP 2 CIRCUIT 10LFCSPManufacturer: Analog Devices Inc.
Categories: Instrumentation, Op Amps, Buffer Amps
Quality Control: Learn More
The Analog Devices Inc. ADA4691-2ACPZ-RL is a dual-channel, general-purpose operational amplifier featuring rail-to-rail output and input capabilities. This component offers a 3.6 MHz gain bandwidth product and a 1.3 V/µs slew rate, making it suitable for various signal conditioning and amplification tasks. With a low input bias current of 0.5 pA and a quiescent current of 180 µA per channel, it is designed for power-sensitive applications. The ADA4691-2ACPZ-RL operates from a 2.7 V to 5 V supply span and delivers an output current of 55 mA. Its 10-LFCSP-UQ (2x2) package is ideal for surface-mount applications where board space is at a premium. This device finds utility in industrial instrumentation, medical equipment, and consumer electronics. The component is supplied in tape and reel packaging.
Additional Information
Series: -RoHS Status: unknownManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 10-UFQFN, CSP |
| Output Type | Rail-to-Rail |
| Mounting Type | Surface Mount |
| Amplifier Type | General Purpose |
| Operating Temperature | -40°C ~ 125°C |
| Current - Supply | 180µA (x2 Channels) |
| Slew Rate | 1.3V/µs |
| Gain Bandwidth Product | 3.6 MHz |
| Current - Input Bias | 0.5 pA |
| Voltage - Input Offset | 500 µV |
| Supplier Device Package | 10-LFCSP-UQ (2x2) |
| Number of Circuits | 2 |
| Current - Output / Channel | 55 mA |
| Voltage - Supply Span (Min) | 2.7 V |
| Voltage - Supply Span (Max) | 5 V |
