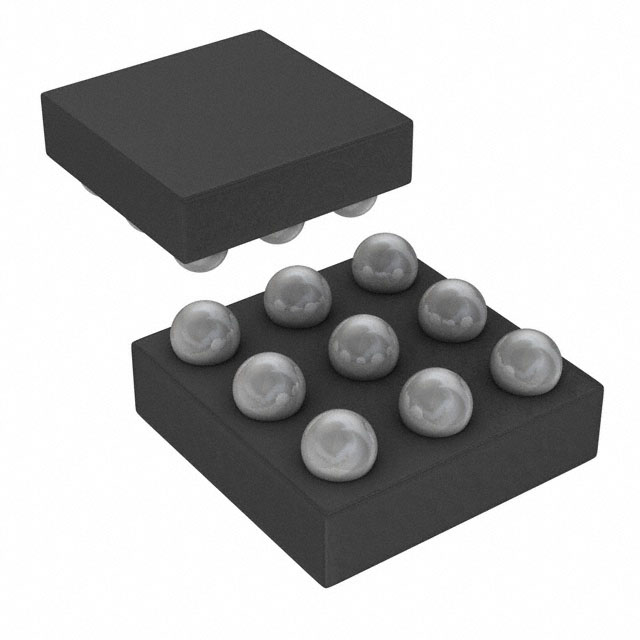

ADA4691-2ACBZ-RL
IC OPAMP GP 2 CIRCUIT 9WLCSPManufacturer: Analog Devices Inc.
Categories: Instrumentation, Op Amps, Buffer Amps
Quality Control: Learn More
Analog Devices Inc. ADA4691-2ACBZ-RL is a general-purpose operational amplifier featuring two rail-to-rail output channels. This device offers a 3.6 MHz gain bandwidth product and a 1.3 V/µs slew rate, making it suitable for a range of signal conditioning applications. With a low input bias current of 0.5 pA and a quiescent current of 180 µA per channel, it is designed for power-sensitive systems. The dual op-amp configuration is housed in a compact 9-WLCSP (1.21x1.22) package, ideal for space-constrained designs. Operating from a 2.7V to 5V supply, the ADA4691-2ACBZ-RL is engineered for applications in instrumentation and automation. The component is supplied in tape and reel packaging.
Additional Information
Series: -RoHS Status: unknownManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 9-UFBGA, WLCSP |
| Output Type | Rail-to-Rail |
| Mounting Type | Surface Mount |
| Amplifier Type | General Purpose |
| Operating Temperature | -40°C ~ 125°C |
| Current - Supply | 180µA (x2 Channels) |
| Slew Rate | 1.3V/µs |
| Gain Bandwidth Product | 3.6 MHz |
| Current - Input Bias | 0.5 pA |
| Voltage - Input Offset | 500 µV |
| Supplier Device Package | 9-WLCSP (1.21x1.22) |
| Number of Circuits | 2 |
| Current - Output / Channel | 55 mA |
| Voltage - Supply Span (Min) | 2.7 V |
| Voltage - Supply Span (Max) | 5 V |
