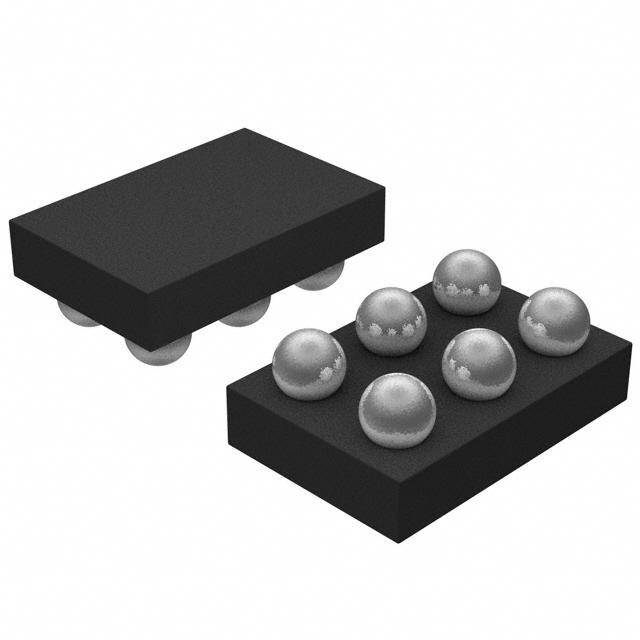

ADA4505-1ACBZ-RL
IC OPAMP VFB 1 CIRCUIT 6WLCSPManufacturer: Analog Devices Inc.
Categories: Instrumentation, Op Amps, Buffer Amps
Quality Control: Learn More
Analog Devices Inc. ADA4505-1ACBZ-RL is a single-circuit, voltage-feedback operational amplifier optimized for low power consumption. This device features rail-to-rail output swing and a low quiescent current of 9µA, making it suitable for battery-powered applications. With a gain bandwidth product of 50 kHz and a slew rate of 0.006V/µs, it is designed for general-purpose amplification and signal conditioning. Key specifications include a 500 µV input offset voltage and 500 nA input bias current. The ADA4505-1ACBZ-RL is housed in a compact 6-WLCSP package, ideal for space-constrained designs in industries such as industrial instrumentation and portable electronics. Operating temperature range is -40°C to 125°C.
Additional Information
Series: -RoHS Status: unknownManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 6-UFBGA, WLCSP |
| Output Type | Rail-to-Rail |
| Mounting Type | Surface Mount |
| Amplifier Type | Voltage Feedback |
| Operating Temperature | -40°C ~ 125°C |
| Current - Supply | 9µA |
| Slew Rate | 0.006V/µs |
| Gain Bandwidth Product | 50 kHz |
| Current - Input Bias | 500 nA |
| Voltage - Input Offset | 500 µV |
| Supplier Device Package | 6-WLCSP (0.91x1.39) |
| Number of Circuits | 1 |
| Current - Output / Channel | 40 mA |
| Voltage - Supply Span (Min) | 1.8 V |
| Voltage - Supply Span (Max) | 5 V |
