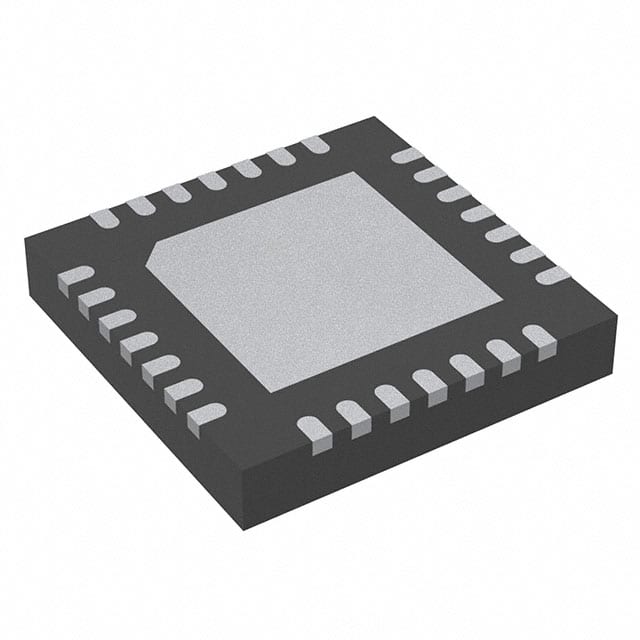

ADA4254ACPZ-RL
IC OPAMP ZER-DRIFT 1CIRC 28LFCSPManufacturer: Analog Devices Inc.
Categories: Instrumentation, Op Amps, Buffer Amps
Quality Control: Learn More
Analog Devices Inc. ADA4254ACPZ-RL is a single-circuit, zero-drift operational amplifier. This component features a low input bias current of 450 pA and a minimal input offset voltage of 3 µV, ensuring high precision in signal acquisition. The ADA4254ACPZ-RL offers a -3dB bandwidth of 2.3 MHz and a slew rate of 1.9 V/µs, suitable for demanding signal processing applications. Its differential output and a wide supply voltage span from 10 V to 56 V make it adaptable to various system requirements. Packaged in a 28-LFCSP (5x5) for surface mounting in a tape and reel configuration, this device operates across a temperature range of -40°C to 105°C. It is commonly utilized in industrial automation, medical instrumentation, and precision measurement systems.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 10 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 28-WFQFN Exposed Pad, CSP |
| Output Type | Differential |
| Mounting Type | Surface Mount |
| Amplifier Type | Zero-Drift |
| Operating Temperature | -40°C ~ 105°C |
| Current - Supply | - |
| Slew Rate | 1.9V/µs |
| Current - Input Bias | 450 pA |
| Voltage - Input Offset | 3 µV |
| Supplier Device Package | 28-LFCSP (5x5) |
| Number of Circuits | 1 |
| Current - Output / Channel | 11 mA |
| -3db Bandwidth | 2.3 MHz |
| Voltage - Supply Span (Min) | 10 V |
| Voltage - Supply Span (Max) | 56 V |
