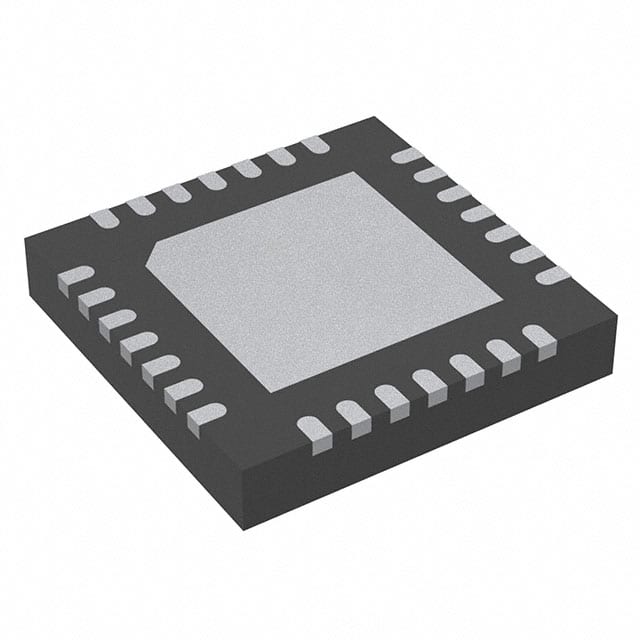

ADA4254ACPZ-R7
IC OPAMP ZER-DRIFT 1CIRC 28LFCSPManufacturer: Analog Devices Inc.
Categories: Instrumentation, Op Amps, Buffer Amps
Quality Control: Learn More
The Analog Devices Inc. ADA4254ACPZ-R7 is a single-circuit, zero-drift operational amplifier. This device features a low input bias current of 450 pA and a low input offset voltage of 3 µV, contributing to high precision measurements. With a -3dB bandwidth of 2.3 MHz and a slew rate of 1.9 V/µs, it is suitable for demanding signal conditioning applications. The amplifier supports a wide supply voltage span from 10 V to 56 V. Its output type is differential, and it is housed in a 28-LFCSP (5x5) package, designed for surface mounting. Operating across a temperature range of -40°C to 105°C, the ADA4254ACPZ-R7 finds application in industrial instrumentation, test and measurement, and medical equipment where high accuracy and stability are critical. The component is supplied in tape and reel packaging.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 10 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 28-WFQFN Exposed Pad, CSP |
| Output Type | Differential |
| Mounting Type | Surface Mount |
| Amplifier Type | Zero-Drift |
| Operating Temperature | -40°C ~ 105°C |
| Current - Supply | - |
| Slew Rate | 1.9V/µs |
| Current - Input Bias | 450 pA |
| Voltage - Input Offset | 3 µV |
| Supplier Device Package | 28-LFCSP (5x5) |
| Number of Circuits | 1 |
| Current - Output / Channel | 11 mA |
| -3db Bandwidth | 2.3 MHz |
| Voltage - Supply Span (Min) | 10 V |
| Voltage - Supply Span (Max) | 56 V |
