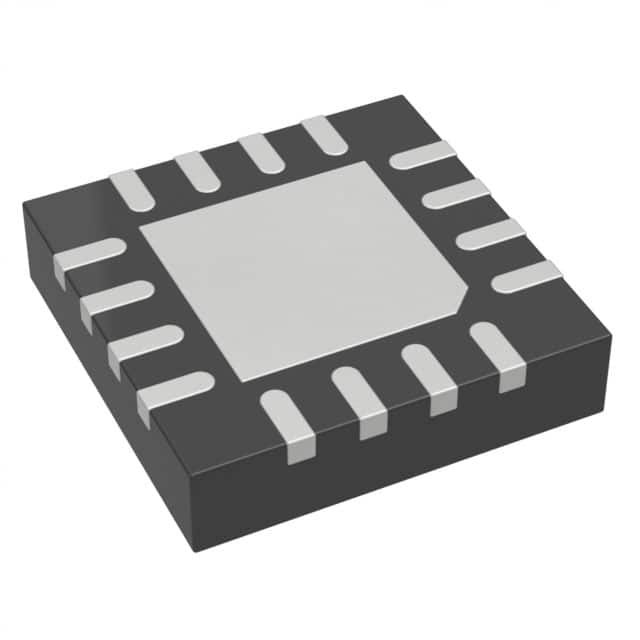

ADA4096-4ACPZ-R7
IC OPAMP GP 4 CIRCUIT 16LFCSPManufacturer: Analog Devices Inc.
Categories: Instrumentation, Op Amps, Buffer Amps
Quality Control: Learn More
General Purpose Amplifier 4 Circuit Rail-to-Rail 16-LFCSP-WQ (3x3)
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 10 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 16-WFQFN Exposed Pad, CSP |
| Output Type | Rail-to-Rail |
| Mounting Type | Surface Mount |
| Amplifier Type | General Purpose |
| Operating Temperature | -40°C ~ 125°C |
| Current - Supply | 60µA (x4 Channels) |
| Slew Rate | 0.4V/µs |
| Gain Bandwidth Product | 786 kHz |
| Current - Input Bias | 3 nA |
| Voltage - Input Offset | 35 µV |
| Supplier Device Package | 16-LFCSP-WQ (3x3) |
| Number of Circuits | 4 |
| Current - Output / Channel | 10 mA |
| -3db Bandwidth | 1.52 MHz |
| Voltage - Supply Span (Min) | 3 V |
| Voltage - Supply Span (Max) | 30 V |
