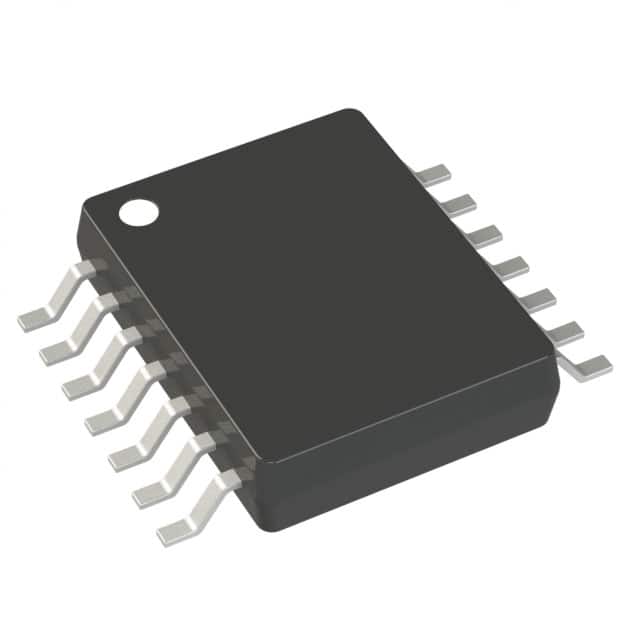

AD8648WARUZ
QUAD, 24MHZ, RRIO, 5V OP AMPManufacturer: Analog Devices Inc.
Categories: Instrumentation, Op Amps, Buffer Amps
Quality Control: Learn More
Analog Devices Inc. AD8648WARUZ is a quad operational amplifier featuring a 24 MHz gain bandwidth product and Rail-to-Rail output capabilities. This general-purpose amplifier is designed for precision applications, offering a low input bias current of 0.3 pA and an output current of 120 mA per channel. The device operates from a supply voltage range of 2.7 V to 5.5 V, with a typical quiescent current of 1.5 mA per channel. Its 11 V/µs slew rate ensures efficient signal processing. The AD8648WARUZ is housed in a 14-TSSOP package, suitable for surface mounting. This component finds application in instrumentation and buffering circuits within automotive, industrial, and consumer electronics sectors. The operating temperature range is -40°C to 125°C.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ActivePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | 14-TSSOP (0.173"", 4.40mm Width) |
| Output Type | Rail-to-Rail |
| Mounting Type | Surface Mount |
| Amplifier Type | General Purpose |
| Operating Temperature | -40°C ~ 125°C |
| Current - Supply | 1.5mA (x4 Channels) |
| Slew Rate | 11V/µs |
| Gain Bandwidth Product | 24 MHz |
| Current - Input Bias | 0.3 pA |
| Voltage - Input Offset | 600 µV |
| Supplier Device Package | 14-TSSOP |
| Number of Circuits | 4 |
| Current - Output / Channel | 120 mA |
| Voltage - Supply Span (Min) | 2.7 V |
| Voltage - Supply Span (Max) | 5.5 V |
