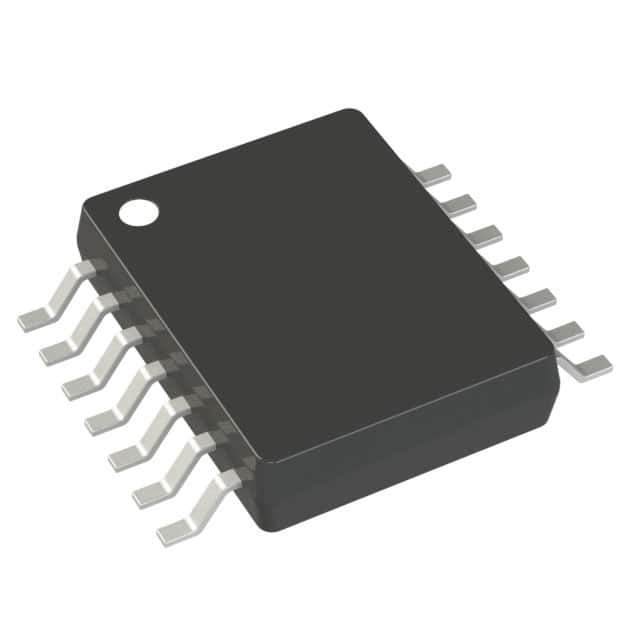

AD8644ARUZ
IC OPAMP GP 4 CIRCUIT 14TSSOPManufacturer: Analog Devices Inc.
Categories: Instrumentation, Op Amps, Buffer Amps
Quality Control: Learn More
Analog Devices Inc. AD8644ARUZ is a quad, general-purpose operational amplifier featuring rail-to-rail output and low input bias current of 80 nA. This amplifier offers a gain bandwidth product of 5.5 MHz and a slew rate of 7.5 V/µs, suitable for high-performance applications. Designed for surface mounting, it is provided in a 14-TSSOP package. The device operates with a supply voltage span from 5 V to 18 V, consuming approximately 800 µA per channel. Key specifications include a 1 mV input offset voltage and a 70 mA output current per channel. The AD8644ARUZ finds application in instrumentation and signal processing across various industrial and consumer electronics sectors.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 10 week(s)Product Status: ActivePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | 14-TSSOP (0.173"", 4.40mm Width) |
| Output Type | Rail-to-Rail |
| Mounting Type | Surface Mount |
| Amplifier Type | General Purpose |
| Operating Temperature | -20°C ~ 85°C |
| Current - Supply | 800µA (x4 Channels) |
| Slew Rate | 7.5V/µs |
| Gain Bandwidth Product | 5.5 MHz |
| Current - Input Bias | 80 nA |
| Voltage - Input Offset | 1 mV |
| Supplier Device Package | 14-TSSOP |
| Number of Circuits | 4 |
| Current - Output / Channel | 70 mA |
| Voltage - Supply Span (Min) | 5 V |
| Voltage - Supply Span (Max) | 18 V |
