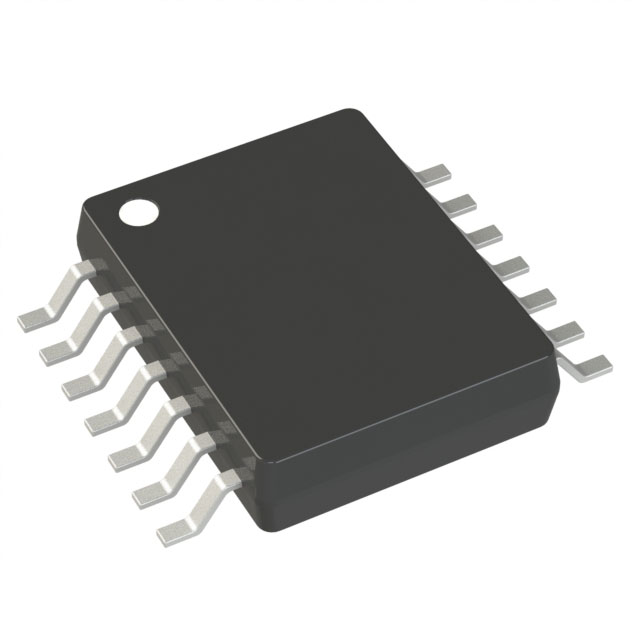

AD8644ARU
IC OPAMP GP R-R 5.5MHZ 14TSSOPManufacturer: Analog Devices Inc.
Categories: Instrumentation, Op Amps, Buffer Amps
Quality Control: Learn More
Analog Devices Inc. AD8644ARU is a quad, general-purpose operational amplifier featuring rail-to-rail output and input capabilities. This device offers a 5.5 MHz gain bandwidth product and a high slew rate of 7.5 V/µs, making it suitable for demanding applications. Each channel draws a low quiescent current of 800 µA, with a typical input bias current of 80 nA and an output current capability of 70 mA. The AD8644ARU operates over a supply voltage range of 5 V to 18 V and is housed in a 14-TSSOP (0.173", 4.40mm width) surface-mount package. This component finds application in industrial automation, medical instrumentation, and consumer electronics. The operating temperature range is -20°C to 85°C.
Additional Information
Series: -RoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | 14-TSSOP (0.173"", 4.40mm Width) |
| Output Type | Rail-to-Rail |
| Mounting Type | Surface Mount |
| Amplifier Type | General Purpose |
| Operating Temperature | -20°C ~ 85°C |
| Current - Supply | 800µA (x4 Channels) |
| Slew Rate | 7.5V/µs |
| Gain Bandwidth Product | 5.5 MHz |
| Current - Input Bias | 80 nA |
| Voltage - Input Offset | 1 mV |
| Supplier Device Package | 14-TSSOP |
| Number of Circuits | 4 |
| Current - Output / Channel | 70 mA |
| Voltage - Supply Span (Min) | 5 V |
| Voltage - Supply Span (Max) | 18 V |
