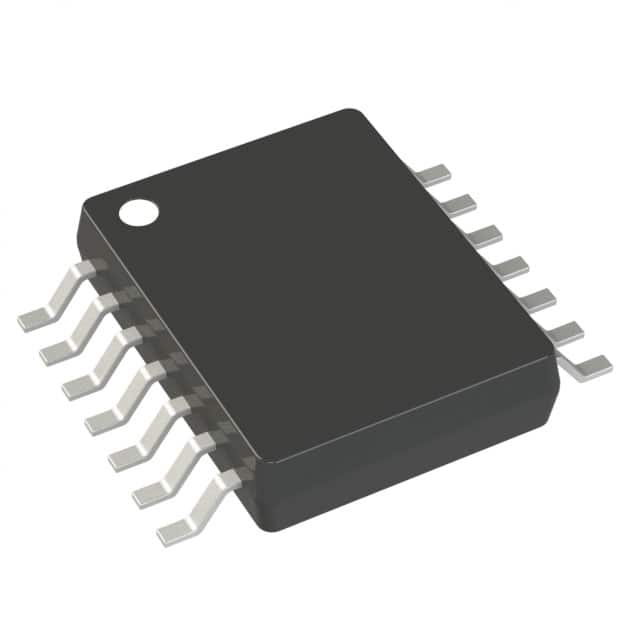

AD8619WARUZ-R7
IC CMOS 4 CIRCUIT 14TSSOPManufacturer: Analog Devices Inc.
Categories: Instrumentation, Op Amps, Buffer Amps
Quality Control: Learn More
Analog Devices Inc. AD8619WARUZ-R7 is a quad CMOS operational amplifier featuring rail-to-rail input and output performance. This device offers a gain bandwidth product of 400 kHz and a low supply current of 38 µA per amplifier. The AD8619WARUZ-R7 exhibits a low input bias current of 0.2 pA and an input offset voltage of 400 µV. With an output current capability of 80 mA per channel and a slew rate of 0.1 V/µs, it is well-suited for applications requiring precise signal amplification. The component operates over a temperature range of -40°C to 125°C and is supplied in a 14-TSSOP surface-mount package on tape and reel. This amplifier finds use in instrumentation, sensor conditioning, and battery-powered systems.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 10 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 14-TSSOP (0.173"", 4.40mm Width) |
| Output Type | Rail-to-Rail |
| Mounting Type | Surface Mount |
| Amplifier Type | CMOS |
| Operating Temperature | -40°C ~ 125°C |
| Current - Supply | 38µA |
| Slew Rate | 0.1V/µs |
| Gain Bandwidth Product | 400 kHz |
| Current - Input Bias | 0.2 pA |
| Voltage - Input Offset | 400 µV |
| Supplier Device Package | 14-TSSOP |
| Number of Circuits | 4 |
| Current - Output / Channel | 80 mA |
| Voltage - Supply Span (Min) | 1.8 V |
| Voltage - Supply Span (Max) | 5 V |
Request a Quote
