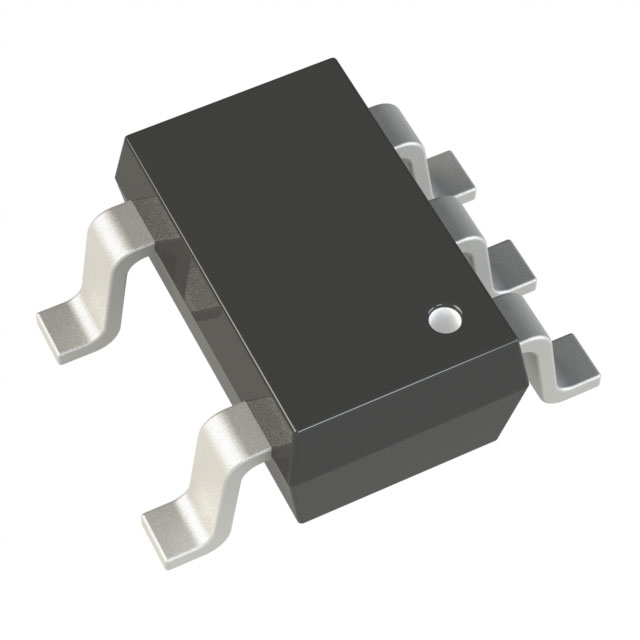

AD8613AUJZ-R2

IC OPAMP GP 1 CIRCUIT TSOT23-5

Categories: Instrumentation, Op Amps, Buffer Amps

Quality Control: Learn More

Analog Devices Inc. AD8613AUJZ-R2 is a single-circuit, general-purpose operational amplifier featuring rail-to-rail output capabilities. This precision amplifier offers a low input bias current of 0.2 pA and an input offset voltage of 400 µV, making it suitable for high-impedance signal processing applications. With a gain bandwidth product of 400 kHz and a slew rate of 0.1 V/µs, it excels in instrumentation and signal conditioning circuits. The AD8613AUJZ-R2 operates from a supply voltage range of 1.8 V to 5 V, drawing a quiescent current of only 38 µA. Its output current capability is 80 mA. Packaged in a TSOT-23-5 for surface mounting and supplied on tape and reel, this component is frequently utilized in medical equipment, sensor interfaces, and battery-powered portable devices.

Additional Information

Series: -RoHS Status: unknownManufacturer Lead Time: No lead time information availableProduct Status: DiscontinuedPackaging: Tape & Reel (TR)Datasheet:

Download Free CAD Model:

Technical Details:

Packaging	Tape & Reel (TR)
Package / Case	SOT-23-5 Thin, TSOT-23-5
Output Type	Rail-to-Rail
Mounting Type	Surface Mount
Amplifier Type	General Purpose
Operating Temperature	-40°C ~ 125°C
Current - Supply	38µA
Slew Rate	0.1V/µs
Gain Bandwidth Product	400 kHz
Current - Input Bias	0.2 pA
Voltage - Input Offset	400 µV
Supplier Device Package	TSOT-23-5
Number of Circuits	1
Current - Output / Channel	80 mA
Voltage - Supply Span (Min)	1.8 V
Voltage - Supply Span (Max)	5 V
