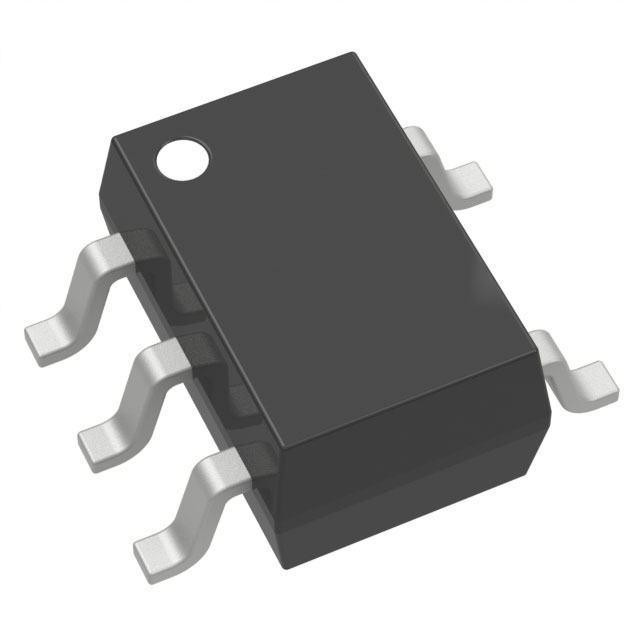

AD8613AKSZ-R2

IC OPAMP GP 1 CIRCUIT SC70-5

Categories: Instrumentation, Op Amps, Buffer Amps

Quality Control: Learn More

Analog Devices Inc. AD8613AKSZ-R2 is a single-circuit, general-purpose operational amplifier featuring rail-to-rail output. This component provides a 400 kHz gain-bandwidth product with a low supply current of 38µA. It operates from a 1.8V to 5V supply span and exhibits an input bias current of 0.2 pA and an input offset voltage of 400 µV. The AD8613AKSZ-R2 delivers 80 mA of output current per channel and has a slew rate of 0.1V/µs. Designed for surface mounting, it is supplied in a compact SC-70-5 package and is available on tape and reel. This amplifier is suitable for applications in instrumentation and other precision circuitry.

Additional Information

Series: -RoHS Status: unknownManufacturer Lead Time: No lead time information availableProduct Status: DiscontinuedPackaging: Tape & Reel (TR)Datasheet:

Download Free CAD Model:

Technical Details:

Packaging	Tape & Reel (TR)
Package / Case	5-TSSOP, SC-70-5, SOT-353
Output Type	Rail-to-Rail
Mounting Type	Surface Mount
Amplifier Type	General Purpose
Operating Temperature	-40°C ~ 125°C
Current - Supply	38µA
Slew Rate	0.1V/µs
Gain Bandwidth Product	400 kHz
Current - Input Bias	0.2 pA
Voltage - Input Offset	400 µV
Supplier Device Package	SC-70-5
Number of Circuits	1
Current - Output / Channel	80 mA
Voltage - Supply Span (Min)	1.8 V
Voltage - Supply Span (Max)	5 V
