AD8606ACBZ-REEL
IC CMOS 2 CIRCUIT 8WLCSPManufacturer: Analog Devices Inc.
Categories: Instrumentation, Op Amps, Buffer Amps
Quality Control: Learn More

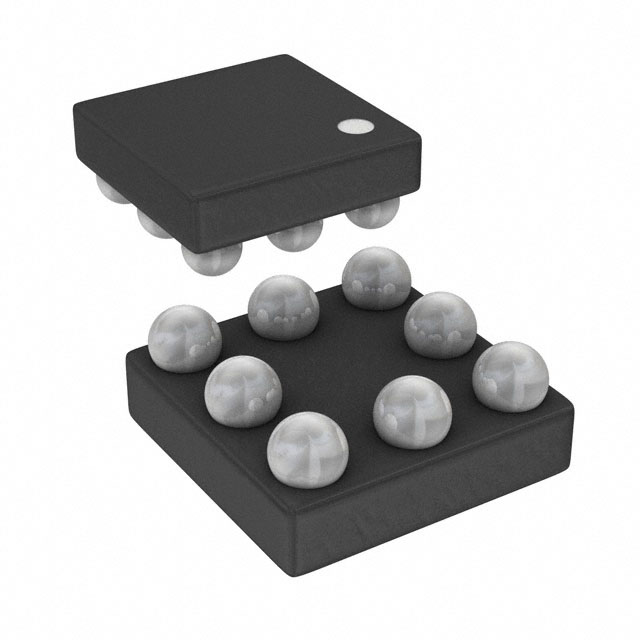

The Analog Devices Inc. AD8606ACBZ-REEL is a dual-channel CMOS operational amplifier from the DigiTrim® series. This rail-to-rail output amplifier features a 10 MHz gain bandwidth product and a 5 V/µs slew rate, making it suitable for demanding applications. With a low input bias current of 1 pA and an input offset voltage of 80 µV, it offers precision performance. The device operates with a supply voltage range of 2.7V to 5.5V and consumes 1mA quiescent current per channel. Its 8-WLCSP (1.43x1.775) package is designed for surface mounting. The AD8606ACBZ-REEL finds application in instrumentation and buffer amplifier circuits across various industries.
Additional Information
Series: DigiTrim®RoHS Status: unknownManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 8-WFBGA, WLCSP |
| Output Type | Rail-to-Rail |
| Mounting Type | Surface Mount |
| Amplifier Type | CMOS |
| Operating Temperature | -40°C ~ 125°C |
| Current - Supply | 1mA (x2 Channels) |
| Slew Rate | 5V/µs |
| Gain Bandwidth Product | 10 MHz |
| Current - Input Bias | 1 pA |
| Voltage - Input Offset | 80 µV |
| Supplier Device Package | 8-WLCSP (1.43x1.775) |
| Number of Circuits | 2 |
| Current - Output / Channel | 80 mA |
| Voltage - Supply Span (Min) | 2.7 V |
| Voltage - Supply Span (Max) | 5.5 V |
