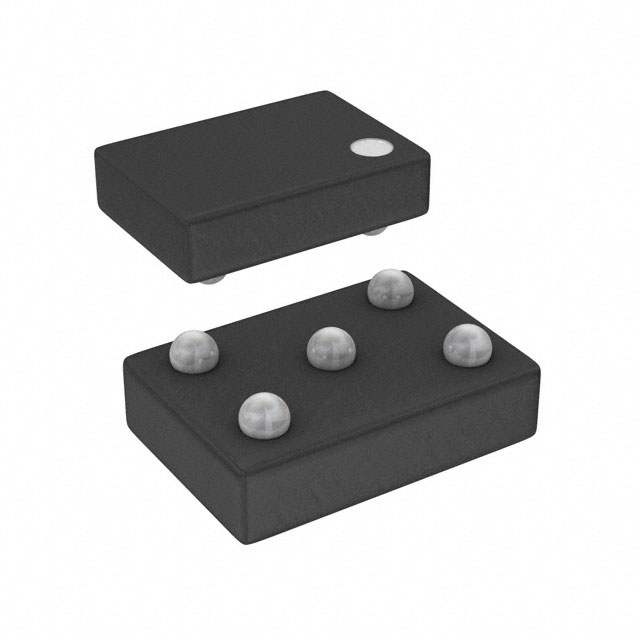

AD8605ACBZ-REEL
IC OPAMP GP 1 CIRCUIT 5WLCSPManufacturer: Analog Devices Inc.
Categories: Instrumentation, Op Amps, Buffer Amps
Quality Control: Learn More
Analog Devices Inc. AD8605ACBZ-REEL is a single-circuit, general-purpose operational amplifier from the DigiTrim® series. This device features rail-to-rail output and input, a gain bandwidth product of 10 MHz, and a slew rate of 5V/µs. The low input bias current of 0.2 pA and input offset voltage of 80 µV make it suitable for precision applications. Operating from a 2.7V to 5.5V supply span, it consumes a quiescent current of 1mA and can deliver an output current of 80 mA per channel. The AD8605ACBZ-REEL is supplied in a 5-WLCSP (0.9x1.29) package, mounted via surface mount technology, and is delivered on tape and reel. This component finds application in instrumentation and industrial automation sectors.
Additional Information
Series: DigiTrim®RoHS Status: unknownManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 5-UFBGA, WLCSP |
| Output Type | Rail-to-Rail |
| Mounting Type | Surface Mount |
| Amplifier Type | General Purpose |
| Operating Temperature | -40°C ~ 125°C |
| Current - Supply | 1mA |
| Slew Rate | 5V/µs |
| Gain Bandwidth Product | 10 MHz |
| Current - Input Bias | 0.2 pA |
| Voltage - Input Offset | 80 µV |
| Supplier Device Package | 5-WLCSP (0.9x1.29) |
| Number of Circuits | 1 |
| Current - Output / Channel | 80 mA |
| Voltage - Supply Span (Min) | 2.7 V |
| Voltage - Supply Span (Max) | 5.5 V |
