AD8570ACP-R2
IC AMP BUF R-R OCTAL 32LFCSPManufacturer: Analog Devices Inc.
Categories: Instrumentation, Op Amps, Buffer Amps
Quality Control: Learn More
Analog Devices Inc. AD8570ACP-R2 is a dual, rail-to-rail buffer amplifier featuring a 6 MHz -3dB bandwidth and a 6 V/µs slew rate. This component offers a typical input bias current of 80 nA and an output current per channel of 35 mA. The device operates from a supply voltage span of 4.5 V to 16 V, with a quiescent current of 700 µA per channel. Designed for surface mounting, it is supplied in a 32-LFCSP-VQ (5x5) package. The AD8570ACP-R2 is suitable for applications in industrial automation, test and measurement, and consumer electronics where high-performance buffering is required. The operating temperature range is -40°C to 85°C.
Additional Information
Series: -RoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Bulk |

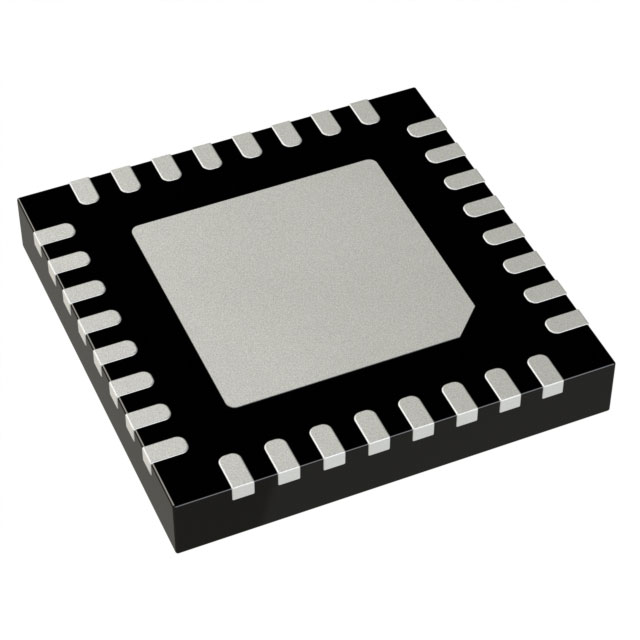

| Package / Case | 32-VFQFN Exposed Pad, CSP |
| Output Type | Rail-to-Rail |
| Mounting Type | Surface Mount |
| Amplifier Type | Buffer |
| Operating Temperature | -40°C ~ 85°C |
| Current - Supply | 700µA (x2 Channels) |
| Slew Rate | 6V/µs |
| Current - Input Bias | 80 nA |
| Voltage - Input Offset | 2 mV |
| Supplier Device Package | 32-LFCSP-VQ (5x5) |
| Number of Circuits | 2 |
| Current - Output / Channel | 35 mA |
| -3db Bandwidth | 6 MHz |
| Voltage - Supply Span (Min) | 4.5 V |
| Voltage - Supply Span (Max) | 16 V |
