AD8560ACP-REEL7
IC BUFFER AMP 5CH 16V 16-LFCSPManufacturer: Analog Devices Inc.
Categories: Instrumentation, Op Amps, Buffer Amps
Quality Control: Learn More
Analog Devices AD8560ACP-REEL7 is a 5-channel buffer amplifier IC. This component features rail-to-rail output and operates from a 4.5V to 32V supply span. With a -3dB bandwidth of 8 MHz and a slew rate of 8V/µs, it is suitable for applications requiring fast signal conditioning. The device exhibits an input bias current of 80 nA and provides an output current of 35 mA per channel. The total supply current for five channels is 780 µA. Packaged in a 16-LFCSP (3x3) for surface mounting, the AD8560ACP-REEL7 operates across a temperature range of -40°C to 85°C. This buffer amplifier finds application in instrumentation and signal processing systems.
Additional Information
Series: -RoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Bulk |

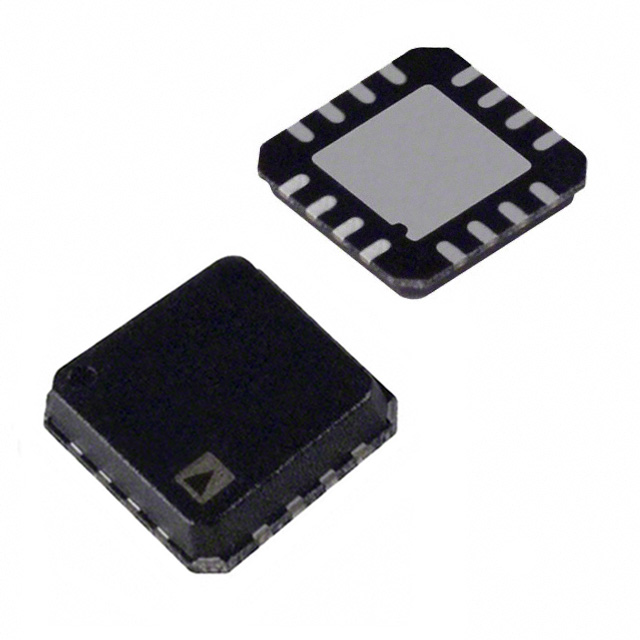

| Package / Case | 16-VFQFN Exposed Pad, CSP |
| Output Type | Rail-to-Rail |
| Mounting Type | Surface Mount |
| Amplifier Type | Buffer |
| Operating Temperature | -40°C ~ 85°C |
| Current - Supply | 780µA (x5 Channels) |
| Slew Rate | 8V/µs |
| Current - Input Bias | 80 nA |
| Voltage - Input Offset | 2 mV |
| Supplier Device Package | 16-LFCSP (3x3) |
| Number of Circuits | 5 |
| Current - Output / Channel | 35 mA |
| -3db Bandwidth | 8 MHz |
| Voltage - Supply Span (Min) | 4.5 V |
| Voltage - Supply Span (Max) | 32 V |
