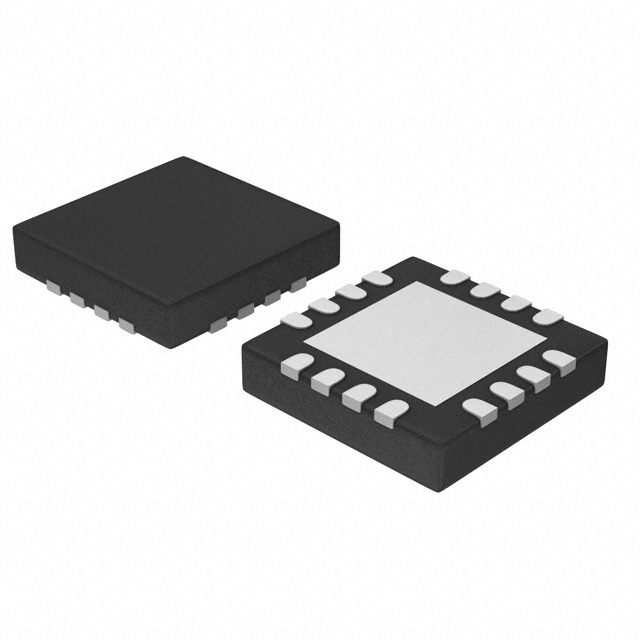

AD8548ACPZ-R7
IC CMOS 4 CIRCUIT 16LFCSPManufacturer: Analog Devices Inc.
Categories: Instrumentation, Op Amps, Buffer Amps
Quality Control: Learn More
Analog Devices Inc. AD8548ACPZ-R7 is a quad CMOS amplifier featuring rail-to-rail output. This component offers a 310 kHz -3dB bandwidth and a 200 kHz gain bandwidth product, making it suitable for low-power instrumentation and signal conditioning applications. With a low input bias current of 5 pA and a supply current of just 18µA per channel, it is optimized for battery-powered devices. The AD8548ACPZ-R7 operates from a 2.7V to 18V supply span and has an output current capability of 12 mA per channel. Its rail-to-rail output stage maximizes dynamic range in low-voltage systems. This device is supplied in a 16-lead LFCSP package on tape and reel. It finds application in industrial control, medical devices, and portable electronics.
Additional Information
Series: -RoHS Status: unknownManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | - |
| Output Type | Rail-to-Rail |
| Mounting Type | - |
| Amplifier Type | CMOS |
| Operating Temperature | -40°C ~ 125°C |
| Current - Supply | 18µA (x4 Channels) |
| Slew Rate | 0.08V/µs |
| Gain Bandwidth Product | 200 kHz |
| Current - Input Bias | 5 pA |
| Voltage - Input Offset | 3 mV |
| Supplier Device Package | - |
| Number of Circuits | 4 |
| Current - Output / Channel | 12 mA |
| -3db Bandwidth | 310 kHz |
| Voltage - Supply Span (Min) | 2.7 V |
| Voltage - Supply Span (Max) | 18 V |
